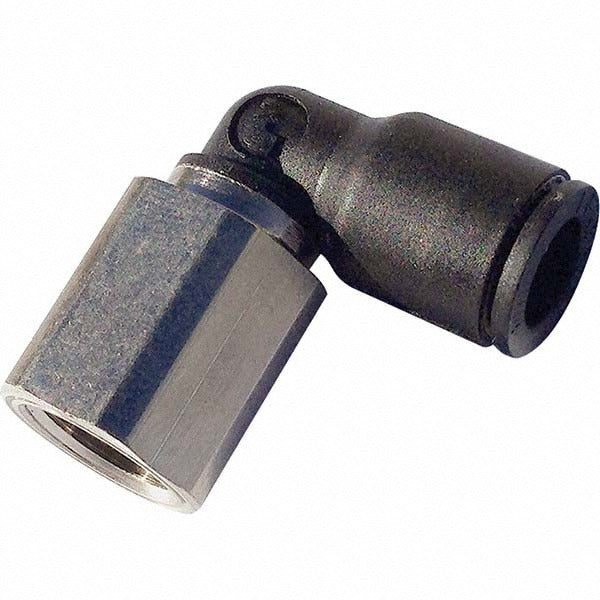

Legris 3192 06 10 90 Female Elbow Tube Fitting 6mm Bspp

Product Description

The LEGRIS 3192 06 10 is a push-to-connect 90-degree female elbow tube fitting designed for use in compressed air and fluid control systems. It accepts 6mm outside diameter tubing and connects to a 1/8 inch BSPP female thread port. The body is constructed from glass-reinforced nylon with nickel-plated brass internal components and a nitrile O-ring seal. Rated to 290 psi maximum working pressure, this fitting handles operating temperatures from -4 degrees F to 175 degrees F and carries a vacuum rating of 28 inches Hg. It is the correct choice where a right-angle tube-to-port connection is needed in tight panel or manifold installations.

This fitting is suited for residential and light commercial pneumatic plumbing, automation equipment, and fluid distribution systems using metric tubing. Typical install scenarios include instrument air lines, pneumatic control panels, HVAC pneumatic controls, and general-purpose compressed air distribution where a 90-degree direction change and a BSPP threaded port interface are required. The push-to-connect design allows fast, tool-free tube insertion and secure retention without additional ferrules or compression hardware.

Key Features

• Push-to-connect design for fast, tool-free tube insertion with 6mm OD tubing
• 90-degree female elbow configuration for right-angle direction changes in tight spaces
• Glass-reinforced nylon body with nickel-plated brass internals for corrosion resistance
• Nitrile O-ring seal rated for air, water, and compatible fluid media
• 290 psi maximum working pressure with 28 inches Hg vacuum rating
• Compliant with RoHS, REACH, and ISO 14743 standards

Compatibility

Designed for use with 6mm outside diameter push-to-connect tubing and 1/8 inch BSPP female threaded ports in pneumatic and fluid control systems.

Installation Notes

Installation is performed by instrumentation technicians, HVAC controls technicians, or licensed plumbers depending on the application. Depressurize and isolate the system before removing or installing any push-to-connect fittings. Ensure tube ends are cut square and deburred before insertion to achieve a proper seal. Verify thread compatibility before installation, as BSPP is a parallel thread form and is not interchangeable with NPT or BSPT tapered threads.
