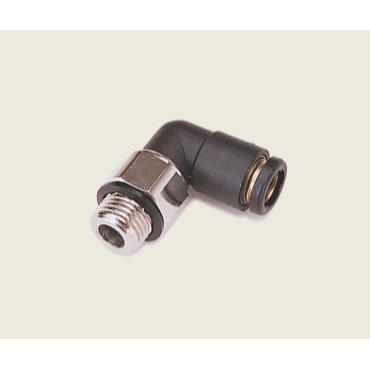

Legris 31890813 Push to Connect Fitting Power 8mm Tubing 1/4 Male BSPP

Product Description

The Legris 31890813 is a push to connect fitting designed for use with 8mm outer diameter tubing. This fitting features a 1/4 male BSPP connection. Its compact elbow design allows for flexible installation in tight spaces.

• Designed for 8mm O.D. tubing
• 1/4 male BSPP thread type
• Made with durable nylon and nickel-plated brass

Product Highlights

This fitting is ideal for connecting lines in fluid transfer systems. It enables quick and reliable connections, saving time during installation.

Product Information

Standard Information

• Brand: Legris
• Part Number: 31890813

Technical Specifications

• Hex Size: 17 mm
• Origin: Plastic Push to Connect Fittings
• End Types: Tubing & BSPP
• Tube O.D.: 8.000 mm
• No. of Ends: 2
• Fitting Angle: 90°, Swivel
• Overall Length: 24.5 mm
• Fitting Description: Oscillating Compact Elbow
• Thread Type: BSPP
• Height: 30.500 mm
• Material: nylon body, nickel-plated brass base with sealing washer
• Thread Size: 1/4
• End Size: 5/16 or 8 mm Tube(f)
• Weight: 0.057 LB
• EAN or UPC: 820099252384
