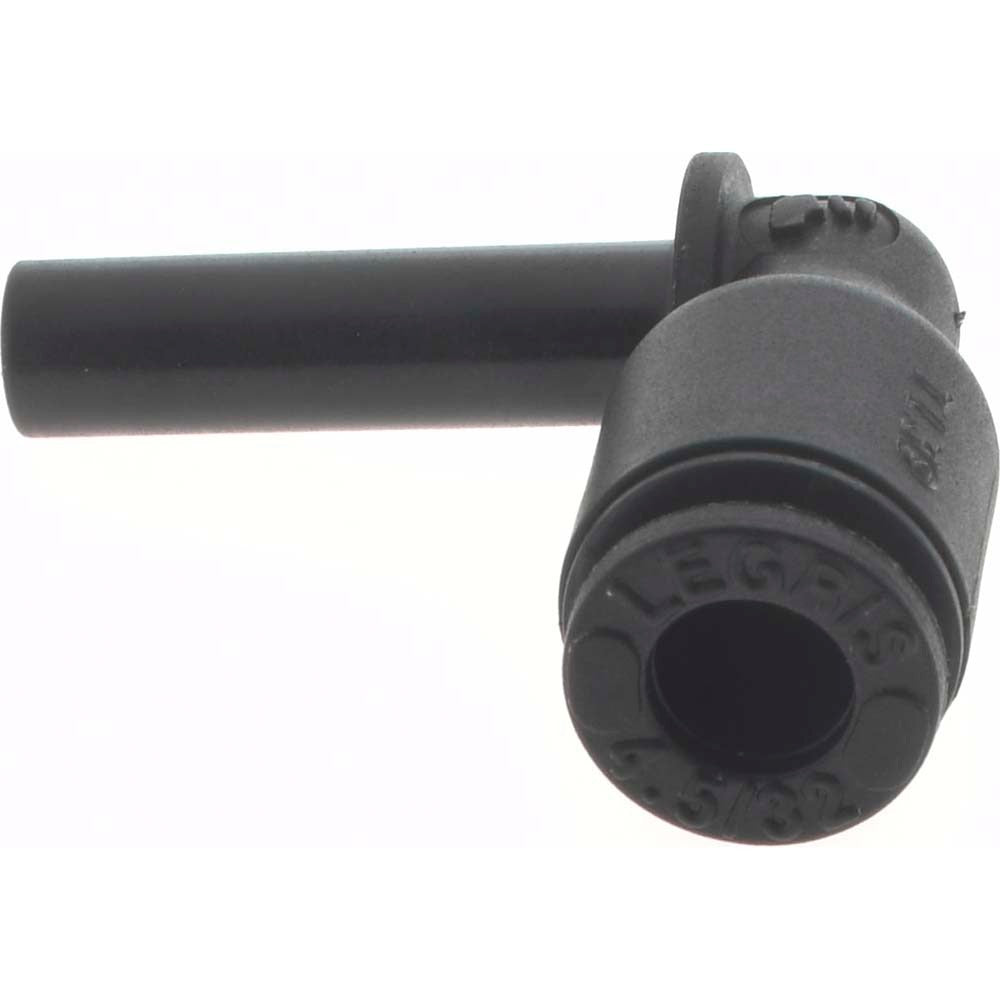

Legris 3182 04 00 Push-to-connect Plug 5/32 Inch Od

Product Description

The LEGRIS 3182 04 00 is a push-to-connect plug fitting designed to seal off open tube ends in pneumatic and fluid-handling systems. Constructed from nylon, this plug accepts tubing with a 5/32 inch outside diameter and is rated to 290 psi. Installation requires no tools — the fitting locks onto the tube end with a single push, making it a fast and reliable option for capping unused ports or terminating lines during system configuration or maintenance. It is handled and installed by HVAC technicians, pneumatic system integrators, and plumbing professionals working with small-bore tubing.

This plug fitting is suited for use in compressed air lines, pneumatic control circuits, and light fluid distribution systems where a secure, leak-resistant tube termination is needed. Its nylon construction makes it appropriate for applications where corrosion resistance and lightweight design are priorities. Typical installations include instrument air networks, pneumatic actuator circuits, and HVAC control tubing systems.

Key Features

• Push-to-connect design — tool-free installation on 5/32 inch OD tubing
• Rated to 290 psi for use in pressurized pneumatic and fluid systems
• Nylon construction resists corrosion and reduces system weight
• Seals open tube ends cleanly to prevent contamination and pressure loss
• Compact plug form factor fits tight plumbing and control panel environments

Compatibility

Designed as an OEM-style push-to-connect plug for systems using 5/32 inch outside diameter tubing in pneumatic and light fluid-handling applications.

Installation Notes

Depressurize and isolate the line before installing or removing any push-to-connect fitting. Insert the tube end fully into the fitting body until it seats against the collet to ensure a proper seal. To release, depress the collet ring and withdraw the tube. Inspect tubing for cuts, ovality, or burrs before connection, as damaged tube ends can compromise the seal under pressure.
