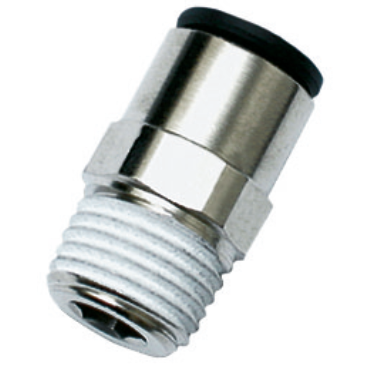

Legris 31756021 Male Connector 290 psi (3/8 in) Replacement MPN

Product Description

The Legris 31756021 Male Connector is designed for reliable connections in various applications. It features an internal hex for easy assembly in tight spaces. This connector is capable of handling a maximum working pressure of 290 psi and works well in temperatures ranging from -4 degrees Fahrenheit to 175 degrees Fahrenheit.

• Constructed from nickel-plated brass
• Thread sealant pre-applied on tapered threads
• Compatible with tubing and BSPT connections

Product Highlights

The Legris Male Connector is ideal for plumbing and HVAC applications, providing strong and leak-proof connections.

Product Information

Standard Information

• Brand: Legris
• MPN: 31756021

Technical Specifications

• Thread Size: R1/2
• Body Material: Nickel-Plated Brass
• Fitting Angle: Straight
• Height: 16.800 mm
• Hex Size: 21 mm
• End Size: 3/8 Tube(f)
• End Types: Tubing & BSPT
• Fitting Type: Stud Fitting
• Thread Type: BSPT
• Tube O.D.: 3/8 in
• No. of Ends: 2
• Weight: 0.138 LB
• EAN or UPC: 820099248424
