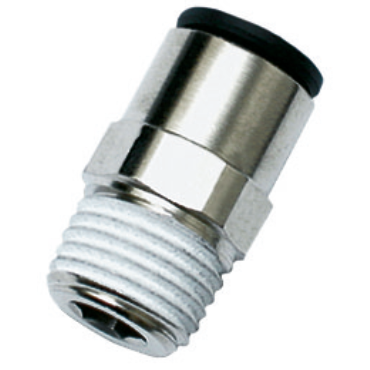

Legris 31756018 Male Connector 3/8 NPT (3/8 in) Replacement MPN

Product Description

The Legris 31756018 Male Connector is designed for use with three-eighths inch outer diameter tubing and includes a three-eighths male NPT thread. This connector is essential in various fluid transfer applications.

• Internal hex allows ease of assembly in tight spaces
• Maximum working pressure of two hundred ninety psi
• Working temperature range from negative four degrees Fahrenheit to one hundred seventy-five degrees Fahrenheit

Product Highlights

This connector is made for straightforward installation and durability in demanding conditions.

Product Information

Standard Information

• Brand: Legris
• MPN: 31756018

Technical Specifications

• Hex Size: 18 mm
• Tube O.D.: 3/8 in
• Body Material: Nickel-Plated Brass
• Thread Size: 3/8
• End Types: Tubing & NPT
• End Size: 3/8 Tube(f)
• No. of Ends: 2
• Thread Type: NPT
• Fitting Angle: Straight
• Fitting Description: Male Connector
• Size Type: Fractional Sizes
• Material: Nickel-Plated Brass
• Origin: Plastic Push to Connect Fittings
• Weight: 0.06 LB
