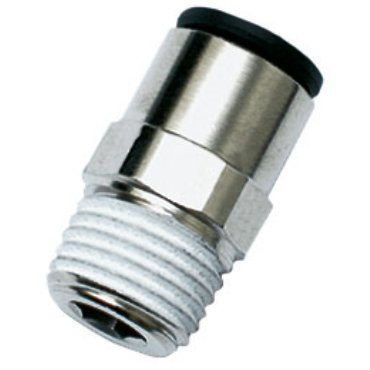

Legris 31751213 Male Connector 12 mm O.D. Tubing 1/4 Male BSPT

Product Description

The Legris Male Connector, MPN 31751213, is designed for use with twelve millimeter O.D. tubing. This connector features a thread size of one-fourth male BSPT.

• Internal hex allows ease of assembly in tight places
• Max. working pressure: 290 psi
• Working temperature range: -4 °F to 175 °F

Product Highlights

This connector is suitable for a variety of applications requiring reliable connections in pneumatic systems.

Product Information

Standard Information

• Brand: Legris
• MPN: 31751213

Technical Specifications

• Tube O.D.: 12 mm
• Fitting Angle: Straight
• Material: Nickel-Plated Brass
• Height: 26.500 mm
• No. of Ends: 2
• Size Type: Metric Tube x BSPT Threads
• Fitting Description: Male Connector
• Body Material: Nickel-Plated Brass
• End Size: 12 mm Tube(f)
• Hex Size: 19 mm
• Thread Type: BSPT
• End Types: Tubing & BSPT
• Origin: Plastic Push to Connect Fittings
• Thread Size: 1/4
• Weight: 0.063 lb
• EAN or UPC: 820099633114
