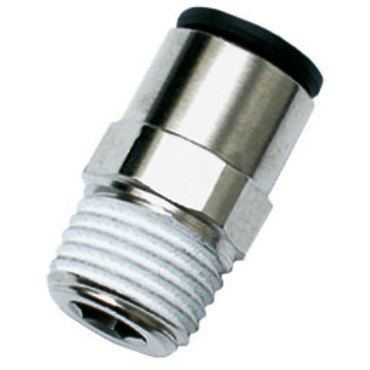

Legris 31750821 Male Connector 5/16 in 1/2 BSPT

Product Description

The Legris 31750821 Male Connector is designed for use with five-sixteenth inch or eight millimeter outer diameter tubing and features a half-inch BSPT connection. This fitting is suitable for various applications in pneumatic systems. It is made from nickel-plated brass, ensuring durability and resistance to corrosion. The connector's internal hex design makes it easy to install in tight spaces.

• Compatible with 5/16 or 8 mm O.D. tubing
• Half-inch BSPT thread type
• Suitable for use in pneumatic applications

Product Highlights

This male connector is ideal for creating secure connections in air and fluid lines. The product is ready to ship and typically ships within twenty-four hours.

Product Information

Standard Information

• Brand: Legris
• Part Number: 31750821

Technical Specifications

• End Types: Tubing & BSPT
• Material: Nickel-Plated Brass
• Fitting Description: Male Connector
• Hex Size: 21 mm
• Tube O.D.: 5/16 in, 8 mm
• Height: 12 mm
• No. of Ends: 2
• Size Type: Metric Tube x BSPT Threads
• Fitting Angle: Straight
• Thread Type: BSPT
• Thread Size: 1/2
• Weight: 0.048 lb
• EAN or UPC: 820099246895
