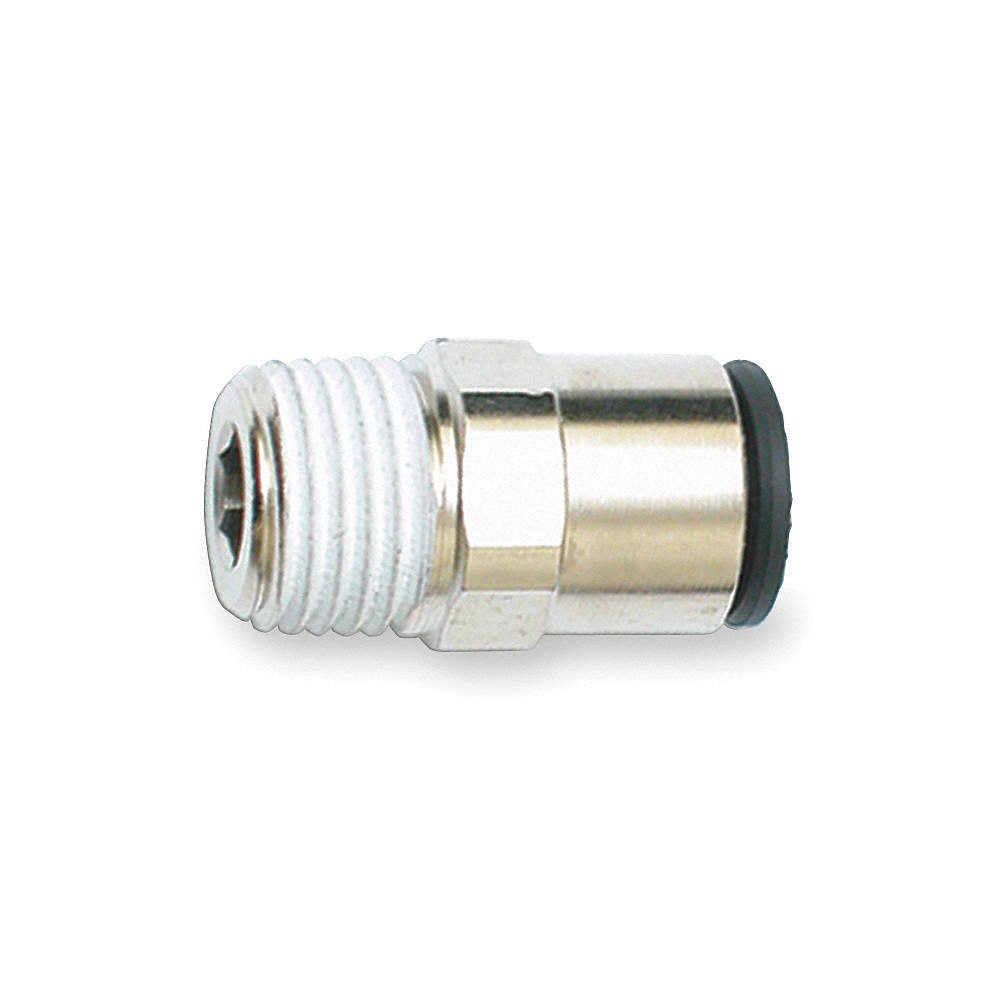

Legris 31750817 Male Connector 3/8 (5/16 or 8 mm Tube) Replacement MPN

Product Description

The Legris 31750817 Male Connector is designed for use with 5/16 or 8 mm O.D. tubing. This connector is equipped with a three-eighths inch male BSPT thread. It is suitable for multiple applications, providing reliable connections in tight spaces.

• Internal hex enables easy assembly in limited space
• Max working pressure of 290 psi
• Temperature range from -4 °F to 175 °F

Product Highlights

This connector features a pre-applied thread sealant on tapered threads for secure attachment. It manages high pressure and temperature efficiently, making it ideal for various professional environments.

Product Information

Standard Information

• Brand: Legris
• MPN: 31750817

Technical Specifications

• Fitting Angle: Straight
• Thread Size: 3/8
• Tube O.D.: 5/16 in, 8.000 mm
• End Size: 5/16 or 8 mm Tube(f)
• Material: Nickel-Plated Brass
• Fitting Description: Male Connector
• Hex Size: 17 mm
• Thread Type: BSPT
• Number of Ends: 2
• Height: 13.000 mm
• Body Material: Nickel-Plated Brass
• Size Type: Metric Tube x BSPT Threads
• End Types: Tubing & BSPT
• Weight: 0.046 LB
• EAN or UPC: 820099246796
