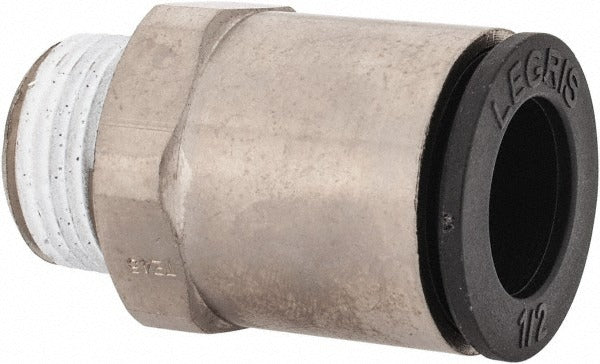

Legris 3175 62 17 Male Connector 1/2 in Od 3/8 Bspt Brass

Product Description

The LEGRIS 3175 62 17 is a push-to-connect male connector tube fitting designed for fast, tool-free tube connections in compressed air, pneumatic, and fluid-transfer systems. Constructed from nickel-plated brass with a nitrile O-ring, it accepts 1/2 inch OD tubing and threads into male BSPT ports at 3/8 inch. The fitting is rated to 290 psi maximum working pressure and operates across a temperature range of -4 degrees F to 175 degrees F. Licensed plumbers, pipefitters, and industrial maintenance technicians install this fitting where a reliable inline tube-to-male-thread transition is required without compression tools or additional ferrules.

This fitting is suited for light industrial, commercial, and OEM pneumatic plumbing applications where BSPT-threaded ports are standard. Typical install scenarios include pneumatic panel assemblies, compressed air distribution lines, and process fluid systems that use 1/2 inch OD tubing. The push-to-connect mechanism allows quick tube insertion and release, making it practical for both new installations and field service work. It meets compliance standards including RoHS, REACH, and ISO 14743, making it appropriate for environments with regulatory material restrictions.

Key Features

• Push-to-connect design allows tool-free tube insertion and release
• Nickel-plated brass body provides corrosion resistance in pneumatic and fluid service
• Nitrile O-ring sealing compatible with common pneumatic and hydraulic fluids
• 290 psi maximum working pressure rating
• Wide operating temperature range: -4 degrees F to 175 degrees F
• Compliant with RoHS, REACH, PED, and ISO 14743 standards

Compatibility

Designed as an OEM-style push-to-connect replacement or new-installation fitting for pneumatic and fluid-transfer systems using 1/2 inch OD tubing and 3/8 inch BSPT male-threaded ports.

Installation Notes

Installation is performed by licensed pipefitters, plumbers, or qualified industrial maintenance technicians. Depressurize and isolate the system fully before removing or installing any fittings. Ensure tubing is cut square and deburred before inserting into the push-to-connect port to achieve a proper seal. Thread engagement into BSPT ports should follow applicable plumbing and pressure-system codes, including IPC and relevant process-piping standards.
