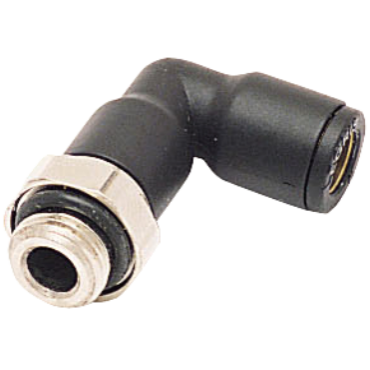

Legris 31691213 Push to Connect Fitting - Extended Male Elbow for 12mm O.D. Tubing - 1/4 Male BSPP

Product Description

The Legris 31691213 is a push to connect fitting designed for efficient and reliable connections in piping applications. This fitting features an extended male elbow shape for twelve millimeter outer diameter tubing. It is suitable for connecting to a quarter inch male BSPP thread.

• Material: Nylon body with O-ring seal and nickel-plated brass base
• Fitting Angle: Ninety degrees
• Application: Ideal for fluid transfer systems

Product Highlights

This product is designed for quick and easy assembly without the need for tools. It allows for a secure connection in tight spaces.

Product Information

Standard Information

• Brand: Legris
• MPN: 31691213

Technical Specifications

• Fitting Description: Extended Male Elbow
• End Size: 12 mm Tube(f)
• Thread Size: 1/4
• Overall Length: 40.5 mm
• Height: 44.500 mm
• Weight: 0.132 LB
• Origin: Plastic Push to Connect Fittings
• Number of Ends: 2
• Tube O.D.: 12.000 mm
• Hex Size: 19 mm
• End Types: Tubing & BSPP
• Thread Type: BSPP
• Fitting Angle: 90 degrees
