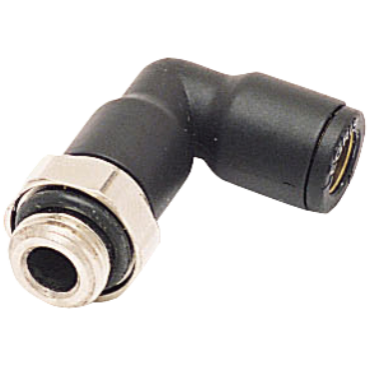

Legris 31690655 Push to Connect Fitting

Product Description

The Legris 31690655 is a push to connect fitting designed for efficient fluid transfer. This fitting is suitable for six millimeter outer diameter tubing and features a seven millimeter male metric port size. It allows for quick and secure connections, saving time during installation.

• Used with six millimeter O.D. tubing
• Features a 90-degree angled design
• Constructed from nylon with a nickel-plated brass base

Product Highlights

The Legris push to connect fitting provides a reliable connection for fluid systems in various applications.

Product Information

Standard Information

• Brand: Legris
• Part Number: 31690655

Technical Specifications

• Tube O.D.: 6.000 mm
• End Size: 6 mm Tube(f)
• Thread Size: M7
• Fitting Angle: 90 degrees
• Material: Nylon body with O ring seal, nickel-plated brass base
• Height: 26.000 mm
• Fitting Description: Extended Male Elbow
• No. of Ends: 2
• Thread Type: Metric
• Hex Size: 10 mm
• Overall Length: 23 mm
• End Types: Tubing & Metric Thread
• Origin: Plastic Push to Connect Fittings
• Weight: 0.019 LB
• EAN or UPC: 820099244914
