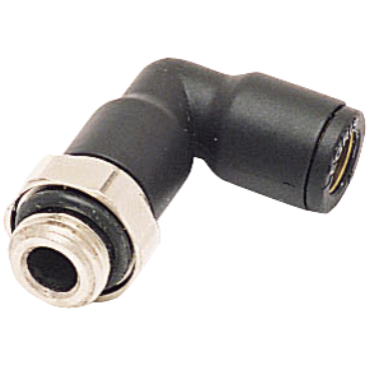

Legris 31690420 90 Degree Male Elbow Push to Connect Fitting

Product Description

Legris 31690420 is a 90 degree male elbow fitting used for pneumatic applications. It connects semi-rigid plastic tubing quickly with minimal effort. The body is made from glass-filled nylon, while the threaded parts are nickel-plated brass. Buna-nitrile seals ensure a tight fit. The patented stainless steel gripping ring allows easy push-to-connect functionality.

• Made from glass-filled nylon and nickel-plated brass
• Reusable design with no deformation of tubing
• Patented gripping ring for tight connections

Product Highlights

This fitting connects 5/32 or 4 mm outer diameter tubing to a 10-32 male UNF thread.

Product Information

Standard Information

• Brand: Legris
• MPN: 31690420

Technical Specifications

• Fitting Description: 90 Degree Male Elbow
• Thread Size: #10-32
• Fitting Angle: 90 Degree
• Thread Type: UNF
• End Size: 5/32 or 4 mm Tube (f)
• Material: Nickel-Plated Brass
• Tube O.D.: 4.000 mm, 5/32 inch
• Size Type: Fractional Sizes
• No. of Ends: 2
• Hex Size: 8 mm
• Height: 0.910 inch
• Weight: 0.016 lb
• EAN or UPC: 820099244587
