Legris 31681008 Expander 10 mm O.D. Tubing to 5/16 or 8 mm O.D. Tubing

Product Description

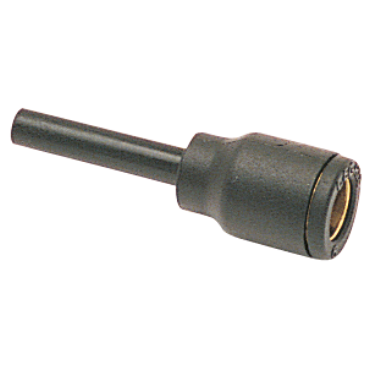

The Legris 31681008 Expander is designed for seamless connections between ten millimeter outer diameter tubing to five-sixteenth or eight millimeter outer diameter tubing. This fitting helps in establishing strong and reliable connections for various applications.

• Max working pressure of 290 psi
• Temperature range from minus four degrees Fahrenheit to 175 degrees Fahrenheit
• Compatible with tubing connections

Product Highlights

This expander fitting supports efficient tubing transitions and is easy to install for quick assembly.

Product Information

Standard Information

• Origin: Plastic Push to Connect Fittings
• Material: Nylon Body

Technical Specifications

• Size Type: Metric Sizes
• No. of Ends: 2
• End Size: 10 mm Tube(f)
• Tube O.D. 1: 10 mm
• Tube O.D. 2: 8 mm, 5/16 in
• Fitting Description: Expander
• Fitting Angle: Straight
• Body Material: Nylon
• Overall Length: 42.500 mm
• Weight: 0.019 lb
• EAN or UPC: 820099244099
