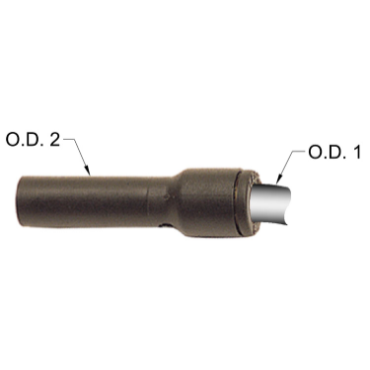

Legris 31660860 Reducer

Product Description

Legris 31660860 is a union reducer designed for connecting semirigid plastic tubing in various pneumatic applications. This fitting simplifies the joining process, ensuring a leak-free connection. It is constructed with a glass-filled nylon body and features nickel-plated brass threaded components. The elastomer seals are made from buna-nitrile. The patented stainless steel gripping ring allows for easy insertion of tubing and ensures a tight fit. A plastic release button on each fitting makes connection or disconnection straightforward, requiring minimal force and no tools. This product is compatible with nylon, polyurethane, polyethylene, or Teflon tubing.

• Union reducer for 3/8 inch tubing to 5/16 inch tubing
• Reusable and does not deform tubing
• Low force required for connection and disconnection

Product Highlights

This reducer is ideal for pneumatic applications that require quick and reliable tubing connections.

Product Information

Standard Information

• Brand: Legris
• Part Number: 31660860

Technical Specifications

• Max. Working Pressure: 290 psi
• Working Temperature: -4 °F to 175 °F
• Vacuum Rating: 28 Hg
• Material: Nylon body
• Body Material: Nylon
• Tube O.D.: 5/16 inch, 8 mm
• Fitting Description: Reducer
• No. of Ends: 2
• End Types: Tubing
• Fitting Angle: Straight
• Size Type: Fractional Sizes
• Weight: 0.013 LB
• EAN or UPC: 820099583457
