Legris 31660812 Reducer - Push-to-Connect Fittings

Product Description

The Legris 31660812 reducer is a push-to-connect fitting designed for use with semirigid plastic tubing in pneumatic applications. It connects 12 mm tubing to 8 mm tubing with ease and reliability. The body of this fitting is made from glass-filled nylon, while the threaded components feature nickel-plated brass. Buna-nitrile elastomer seals provide durability, ensuring a secure and leak-free connection.

• Connects 12 mm and 8 mm tubing easily
• Utilizes a patented stainless steel gripping ring for a secure connection
• Reusable and does not deform tubing

Product Highlights

This reducer is ideal for applications where quick and reliable connections are essential. It features a plastic release button, allowing for easy connection and disconnection without the need for tools, making installation straightforward.

Product Information

Standard Information

• Brand: Legris
• Part Number: 31660812

Technical Specifications

• Max. working pressure: 290 psi
• Working temperature: -4 °F to 175 °F
• Vacuum rating: 28 Hg
• Body Material: Nylon
• No. of Ends: 2
• End Types: Tubing
• Material: Nylon Body
• Origin: Plastic Push-to-Connect Fittings

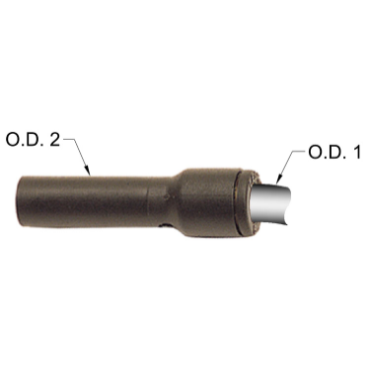

• Tube O.D. 1: 8 mm, 5/16 in
• Tube O.D. 2: 12 mm
• End Size: 5/16 or 8 mm Tube(f)
• Fitting Angle: Straight
• Size Type: Metric Sizes
• Fitting Description: Reducer
• Weight: 0.022 LB
• EAN or UPC: 820099242996
