Legris 31660608 Reducer - Push-to-Connect Fittings

Product Description

Legris 31660608 is a reducer fitting made for connecting 8 mm tubing to 6 mm tubing. It is used in pneumatic applications and offers a push-to-connect design that eases installation.

• Constructed from glass-filled nylon
• Nickel-plated brass threaded components
• Reusable design with no tools needed for installation

Product Highlights

This fitting ensures a tight, leak-free connection by pushing the tubing into a patented stainless steel gripping ring. A plastic release button allows for easy disconnection. It is compatible with nylon, polyurethane, polyethylene, and Teflon tubing.

Product Information

Standard Information

• Brand: Legris
• Part #: 102125082

Technical Specifications

• End Size: 6 mm Tube(f)
• Material: Nylon Body
• Fitting Description: Reducer

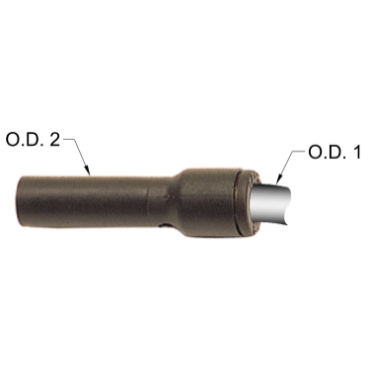

• Tube O.D. 1: 6 mm
• Tube O.D. 2: 8 mm, 5/16 in
• Weight: 0.008 LB
• Max. Working Pressure: 290 psi
• Working Temperature: -4 °F to 175 °F
• Vacuum Rating: 28 Hg
• No. of Ends: 2
• Fitting Angle: Straight
