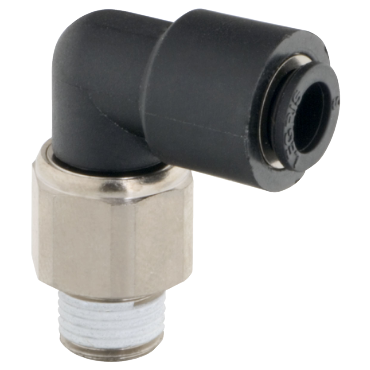

Legris 31595611 Push to Connect Fitting

Product Description

Legris 31595611 is a push-to-connect fitting designed for pneumatic applications. It connects semi-rigid plastic tubing efficiently. The fitting body is made of glass-filled nylon with nickel-plated brass threaded components. Buna-nitrile elastomer seals ensure a leak-free connection. Simply push the tubing into the fitting for a strong hold, and a release button allows for easy disconnection.

• Constructed with glass-filled nylon.
• Compatible with multiple tubing types.
• Quick connection and disconnection with no tools required.

Product Highlights

This fitting maximizes ease of use with minimal labor required for installation.

Product Information

Standard Information

• Brand: Legris
• Part Number: 31595611

Technical Specifications

• No. of Ends: 2
• Origin: Plastic Push to Connect Fittings
• End Size: 1/4 Tube, 1/8 NPT
• Thread Type: NPT
• Overall Length: 0.81 inches
• Body Material: Nylon
• Height: 1.040 inches
• End Types: Tubing & NPT
• Tube O.D.: 1/4 inches
• Fitting Description: Oscillating Compact 90° Elbow
• Fitting Angle: 90°, Swivel
• Thread Size: 1/8
• Weight: 0.044 LB
• EAN or UPC: 820099532196
