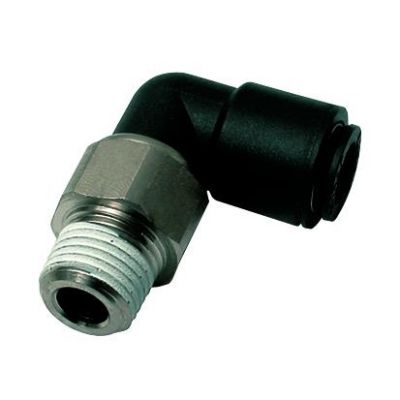

Legris 31591017 Push to Connect Fitting

Product Description

The Legris 31591017 Push to Connect Fitting is designed for reliable connections in pneumatic systems. This fitting allows for the quick and easy setup of ten millimeter outer diameter tubing, featuring a three eighths male BSPT thread.

• Compatible with 10 millimeter tubing
• Swivel design for flexible positioning
• Durable nylon body with a nickel-plated brass base

Product Highlights

The oscillating compact elbow is ideal for tight spaces and offers a secure connection.

Product Information

Standard Information

• Brand: Legris
• Part Number: 31591017

Technical Specifications

• Material: nylon body, nickel-plated brass base, pre-applied thread sealant
• Thread Size: 3/8
• No. of Ends: 2
• End Size: 10 mm Tube(f)
• Height: 33.000 mm
• Tube O.D.: 10.000 mm
• Overall Length: 30.5 mm
• End Types: Tubing & BSPT
• Thread Type: BSPT
• Hex Size: 19 mm
• Fitting Description: Oscillating Compact Elbow
• Origin: Plastic Push to Connect Fittings
• Fitting Angle: 90°, Swivel
• Weight: 0.041 LB
• EAN or UPC: 820099241043
