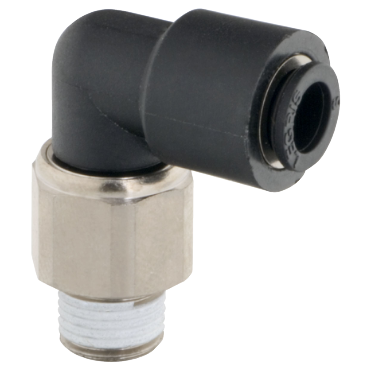

Legris 31590613 Push to Connect Fitting - 6mm O.D. Tubing - 1/4 Male BSPT

Product Description

Legris 31590613 is a push-to-connect fitting ideal for connecting semirigid plastic tubing in pneumatic systems. This fitting features a strong body made of glass-filled nylon and nickel-plated brass components. The elastomer seals are made from buna-nitrile, ensuring durability. To install, simply push the tubing into the stainless steel gripping ring, allowing for a leak-free connection. This design facilitates easy connections and disconnections without the need for tools.

• Vacuum rating of twenty-eight Hg
• Thread sealant pre-applied on tapered threads
• Working temperature range from negative four degrees Fahrenheit to one hundred seventy-five degrees Fahrenheit

Product Highlights

This fitting is suitable for nylon, polyurethane, polyethylene, or Teflon tubing, making it versatile for various applications.

Product Information

Standard Information

• Fitting Description: Oscillating Compact 90° Elbow
• End Size: 6 mm Tube(f)

Technical Specifications

• Height: 22.500 mm
• Overall Length: 22.5 mm
• Thread Type: BSPT
• Fitting Angle: 90°, Swivel
• Thread Size: 1/4
• Body Material: Nylon
• Material: nylon body, nickel-plated brass base, pre-applied thread sealant
• Hex Size: 14 mm
• No. of Ends: 2
• End Types: Tubing & BSPT
• Tube O.D.: 6.000 mm
• Weight: 0.033 LB
• EAN or UPC: 820099240893
