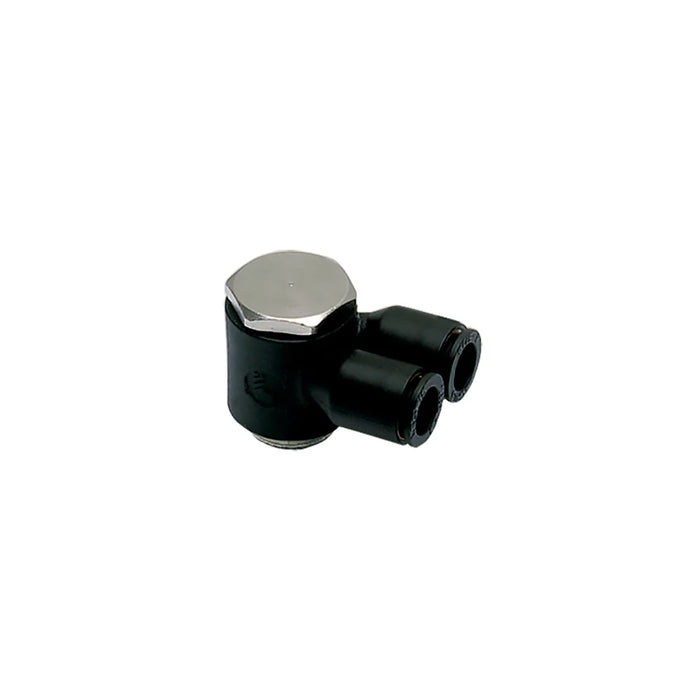

Legris 31490813 Push to Connect Fitting 8mm O.D. 1/4 Male BSPP

Product Description

The Legris 31490813 is a push to connect fitting designed for efficient connections. This fitting accommodates eight millimeter outer diameter tubing and features a one-quarter male BSPP thread for secure attachment. It is useful for a variety of applications where quick connections are needed without additional tools.

• Designed for eight millimeter outer diameter tubing
• Constructed from nylon with a steel bolt and sealing washer
• Offers a 90-degree angle for versatile installation options

Product Highlights

This fitting is ideal for fluid transfer systems and provides reliable connections.

Product Information

Standard Information

• Product SKU: 102135092
• Brand: Legris

Technical Specifications

• Thread Type: BSPP
• Tube O.D.: 8.000 mm
• End Size: 5/16 or 8 mm Tube(f)
• Origin: Plastic Push to Connect Fittings
• Height: 21.000 mm
• Fitting Angle: 90 degrees
• End Types: Tubing & BSPP
• Fitting Description: Twin Banjo
• No. of Ends: 3
• Hex Size: 17 mm
• Material: Nylon body, steel bolt, complete with sealing washer
• Thread Size: 1/4
• Weight: 0.074 LB
• EAN or UPC: 820099583693
