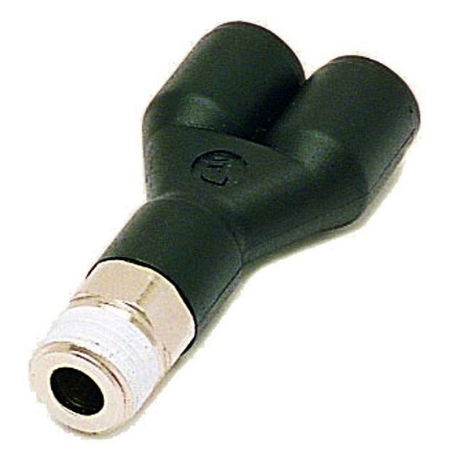

Legris 31480613 Push to Connect Fitting 290 psi 6mm O.D. Tubing 1/4 BSPT

Product Description

Legris 31480613 is a push-to-connect fitting designed for seamless connections in pneumatic applications. This fitting serves to connect semirigid plastic tubing with ease and efficiency. The body is made from glass-filled nylon while the threaded components feature nickel-plated brass. Buna-nitrile elastomer seals provide a tight, leak-free connection.

• Compatible with nylon, polyurethane, polyethylene, and Teflon tubing
• Simple push-to-connect design allows for quick assembly
• Reusable and does not deform tubing

Product Highlights

The Legris 31480613 offers a maximum working pressure of 290 psi and a working temperature range from negative four degrees Fahrenheit to one hundred seventy-five degrees Fahrenheit. The design includes a plastic release button for ease of disconnection and requires no tools for operation.

Product Information

Standard Information

• Brand: Legris
• Part Number: 31480613

Technical Specifications

• No. of Ends: 3
• Thread Type: BSPT
• Body Material: Nickel-Plated Brass
• Fitting Description: Y-Tube to Male Thread
• Thread Size: 1/4
• Hex Size: 14 mm
• End Size: 6 mm Tube(f)
• Fitting Angle: Straight
• Size Type: Metric Tube x BSPT Threads
• Tube O.D.: 6.000 mm
• Height: 40.000 mm
• Weight: 0.041 LB
• EAN or UPC: 820099238104
