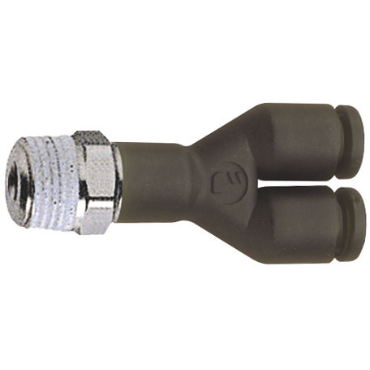

Legris 31480411 Y-Tube to Male Thread

Product Description

Legris 31480411 is a Y-Tube to Male Thread fitting that connects semirigid plastic tubing in pneumatic applications. This fitting uses push-to-connect technology to speed up installation time. Its body is made from glass-filled nylon while the threaded components are nickel-plated brass for durability. The design allows for easy connection and disconnection without tools, ensuring a tight, leak-free seal with minimal effort.

• Y Male Connector
• 5/32 Tube OD
• 1/8 NPT Thread

Product Highlights

Max. working pressure is two hundred ninety psi and working temperature range is from minus four degrees Fahrenheit to one hundred seventy-five degrees Fahrenheit.

Product Information

Standard Information

• Brand: Legris
• Part Number: 31480411

Technical Specifications

• No. of Ends: 3
• End Types: Tubing & NPT
• Tube O.D.: 4.000 mm, 5/32 in
• Size Type: Fractional Sizes
• Origin: Plastic Push to Connect Fittings
• Thread Type: NPT
• Fitting Description: Y-Tube to Male Thread
• End Size: 5/32 or 4 mm Tube(f)
• Thread Size: 1/8
• Fitting Angle: Straight
• Body Material: Nickel-Plated Brass
• Material: Nickel-Plated Brass
• Weight: 0.026 LB
• EAN or UPC: 820099237930
