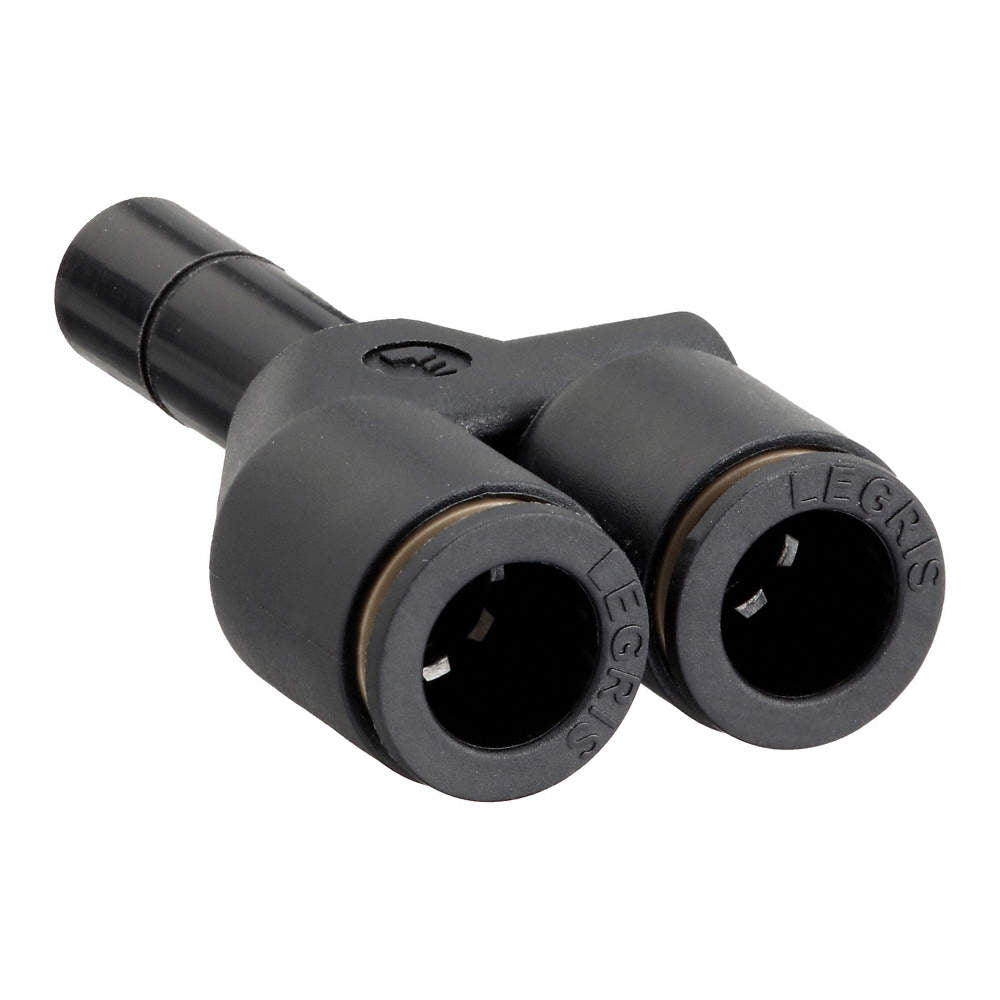

Legris 31420800 Push to Connect Fitting 8mm O.D. Tubing Plug-in Y

Product Description

The Legris 31420800 is a reliable push-to-connect fitting designed for quick connections of eight millimeter outer diameter tubing. This fitting allows easy installation and eliminates the need for tools during assembly. It features a maximum working pressure of two hundred ninety psi and supports a temperature range from minus four degrees Fahrenheit to one hundred seventy-five degrees Fahrenheit.

• Plug-in Y fitting for easy connection
• Designed for 8mm O.D. tubing
• Rotates 360 degrees for installation flexibility

Product Highlights

The Legris 31420800 fitting is ideal for pneumatic and fluid conveyance systems, ensuring a tight seal and reduced leakage risks.

Product Information

Standard Information

• Brand: Legris
• Part Number: 31420800

Technical Specifications

• Number of Ends: 3
• End Size: 5/16 or 8 mm Tube(f)
• Origin: Plastic Push to Connect Fittings
• Fitting Angle: Straight
• Overall Length: 50.5 mm
• Tube O.D. 1: 5/16 in, 8 mm
• Tube O.D. 2: 5/16 in, 8 mm
• Material: Nylon Body
• Fitting Description: Plug-in Y
• End Types: Tubing
• Size Type: Fractional Sizes
• Height: 28.000 mm
• Weight: 0.03 LB
• EAN or UPC: 820099236988
