Legris 31400810 Union Y Push-to-Connect Fittings

Product Description

Legris 31400810 is a Union Y fitting designed for connecting semirigid plastic tubing in pneumatic systems. This fitting simplifies installation and maintenance, making it ideal for professionals in plumbing and HVAC. The body is made from glass-filled nylon for strength and durability. Components are nickel-plated brass and feature buna-nitrile elastomer seals. Achieve a secure connection by pushing the tubing into the stainless steel gripping ring. A plastic release button allows for easy disconnections without tools.

• Max. working pressure: 290 psi
• Working temperature range: -4 °F to 175 °F
• Vacuum rating: 28 Hg

Product Highlights

This Union Y fitting is suitable for various tubing materials, including nylon, polyurethane, polyethylene, and Teflon. It provides a leak-free connection with minimal labor.

Product Information

Standard Information

• Brand: Legris
• MPN: 31400810

Technical Specifications

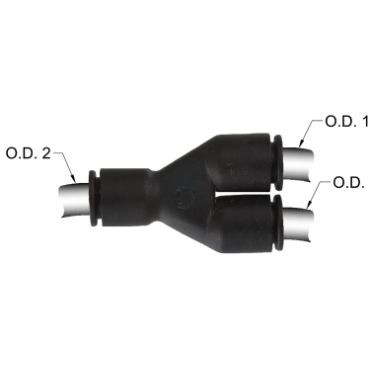

• Tube O.D. 1: 8 mm, 5/16 inches
• Tube O.D. 2: 10 mm
• Overall Length: 47.000 mm
• Height: 28.000 mm
• Material: Nylon Body
• Fitting Angle: Straight
• No. of Ends: 3
• End Size: 5/16 or 8 mm Tube(f)
