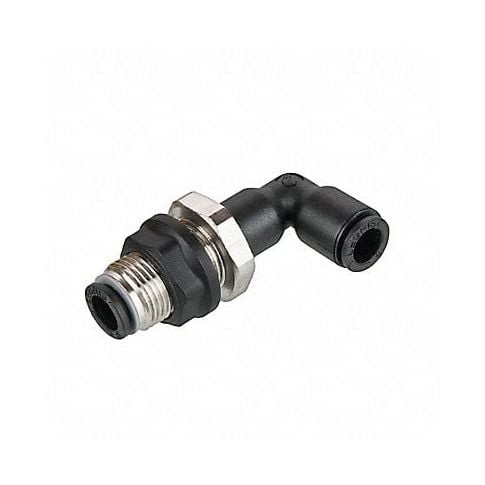

Legris 31395600 Push to Connect Fitting

Product Description

The Legris 31395600 is a Push to Connect Fitting designed for quick and efficient connections in pneumatic systems. This fitting features a bulkhead elbow design for easy installation in tight spaces. It is suitable for use with quarter-inch tubing, accommodating various applications in fluid transfer systems.

• Max working pressure of 290 psi
• Temperature range from -4 °F to 175 °F
• Rotates 360° for flexibility during assembly

Product Highlights

This fitting ensures reliable connections and efficient operation in pneumatic setups.

Product Information

Standard Information

• Brand: Legris
• Part Number: 31395600

Technical Specifications

• No. of Ends: 2
• Overall Length: 18 mm
• Height: 20.000 mm
• Size Type: Fractional Sizes
• End Size: 1/4 Tube
• Fitting Angle: 90°
• Material: Nylon Body
• Body Material: Technical Polymer
• Fitting Description: Equal Bulkhead Elbow
• End Types: Tubing
• Tube O.D.: 1/4 in
• Weight: 0.053 LB
• EAN or UPC: 820099234922
