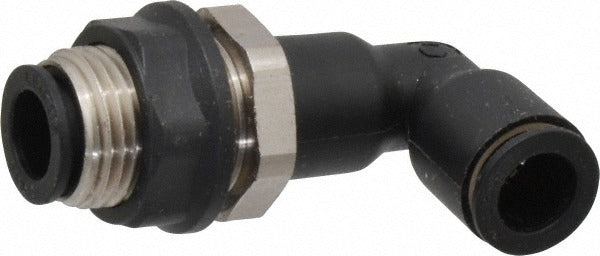

Legris 3139 60 00 Bulkhead Union Elbow 3/8 Inch Od

Product Description

The LEGRIS 3139 60 00 is a push-to-connect bulkhead union elbow tube fitting designed to route tubing through a panel or wall while changing direction at a 90-degree angle. The fitting accepts 3/8 inch outside diameter tubing on both ends and provides a leak-resistant connection without the need for tools or thread sealant. The body is constructed from nylon with nickel-plated brass internal components, and the sealing O-rings are nitrile. Rated to 290 psi, this fitting is suited for pneumatic and fluid transfer lines where a panel-mount elbow connection is required. It is installed by plumbers, pneumatic system technicians, and industrial maintenance professionals.

This fitting is typically used in pneumatic control systems, compressed air distribution, and fluid handling applications where tubing must pass through a bulkhead or enclosure wall at an angle. The push-to-connect design allows quick field installation and removal during maintenance without specialized tooling. It is appropriate for both light industrial and commercial applications where 3/8 inch OD tubing is used and a 290 psi pressure rating meets system requirements.

Key Features

• Push-to-connect design allows tool-free tube insertion and secure locking
• Bulkhead configuration permits panel or wall mounting to route tubing across enclosures
• Elbow geometry provides a 90-degree direction change at the bulkhead
• Nylon body with nickel-plated brass internals for corrosion resistance and durability
• Nitrile O-ring seals compatible with a range of pneumatic and fluid media
• 290 psi pressure rating suitable for standard compressed air and pneumatic control lines

Compatibility

Designed as an OEM-style push-to-connect replacement or new-installation fitting for systems using 3/8 inch outside diameter tubing requiring a bulkhead union elbow configuration.

Installation Notes

Depressurize and isolate the system completely before removing or installing any push-to-connect fitting. Ensure the tubing end is cut cleanly and squarely with no burrs before inserting into the fitting to achieve a proper seal. A bulkhead nut and mounting panel of appropriate thickness are typically required for bulkhead installations. Verify that the tubing material and system media are compatible with nylon body construction and nitrile O-ring seals before commissioning.
