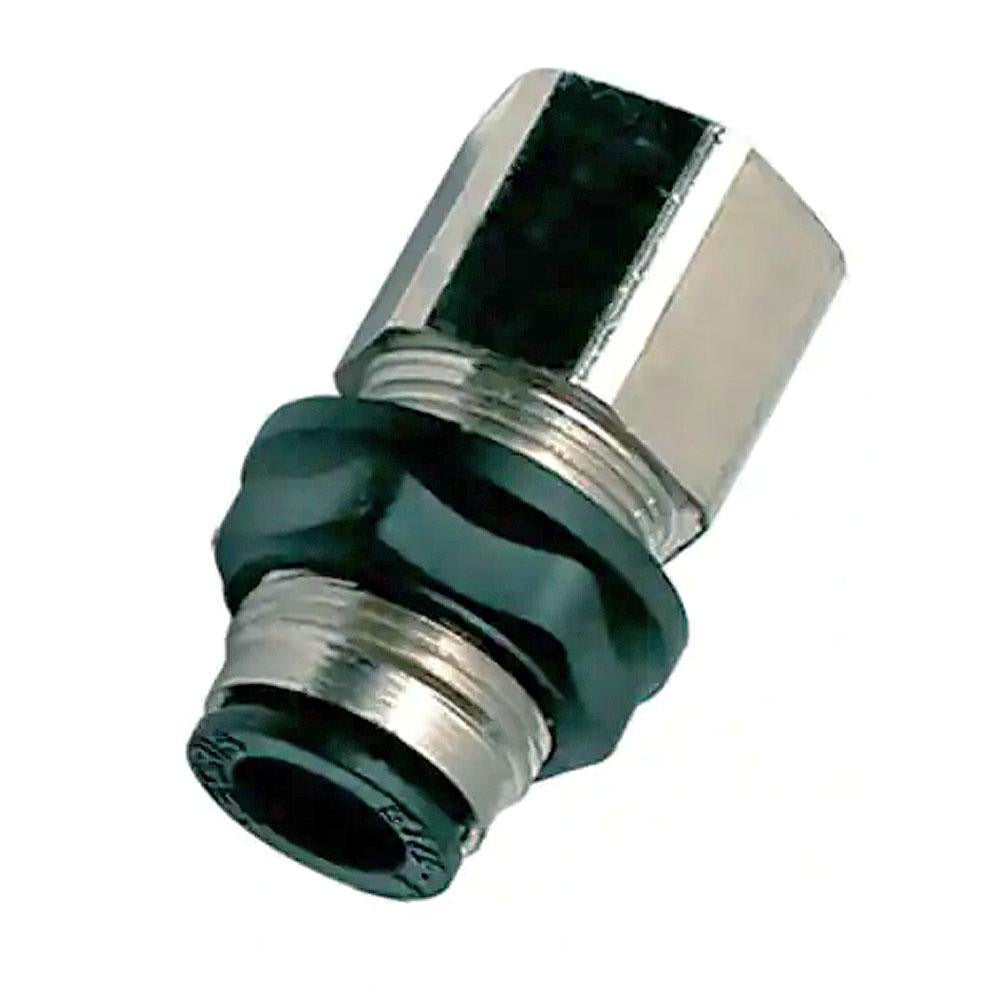

Legris 3136 08 10 Female Bulkhead Tube Fitting 290 Psi

Product Description

The LEGRIS 3136 08 10 is a push-to-connect female bulkhead tube fitting designed for pneumatic and fluid-transfer plumbing systems that require a secure through-panel connection. Constructed from nickel-plated brass, this fitting accepts an 8 mm outside-diameter tube and threads into a panel or bulkhead using a 1/8 inch BSPP thread. It is rated to 290 psi maximum working pressure and handles temperatures from -4 degrees F to 175 degrees F. The nitrile O-ring provides a reliable seal across a broad range of media. Maintenance technicians, pipefitters, and fluid-system assemblers install this type of fitting in compressed-air lines, pneumatic control panels, and light hydraulic circuits.

This fitting is suited for industrial, commercial, and light-duty fluid-power applications where a tube must pass through and seal against a panel wall. The bulkhead configuration allows a single fitting to lock into a drilled or punched hole and create a leak-resistant connection on both sides of the panel. Its BSPP thread type makes it compatible with European-standard ported components and manifolds. The compact overall length of 31 mm keeps installation depth minimal in tight enclosures or control cabinets.

Key Features

• Push-to-connect design accepts 8 mm outside-diameter tubing without tools for tube insertion
• Nickel-plated brass construction resists corrosion in industrial environments
• 290 psi maximum working pressure suits compressed-air and light pneumatic service
• 1/8 inch BSPP thread for compatibility with European-standard ported components
• Nitrile O-ring seal rated from -4 degrees F to 175 degrees F
• Compliant with RoHS, REACH, and ISO 14743 standards

Compatibility

Designed as an OEM-style replacement or new-installation fitting for pneumatic and fluid-transfer systems using 8 mm outside-diameter tubing and 1/8 inch BSPP threaded ports.

Installation Notes

Depressurize and de-energize the system completely before removing or installing any push-to-connect fitting. Verify panel hole size and thread engagement before torquing the bulkhead nut to avoid deforming the fitting body. Tube cut ends should be square and burr-free to ensure a proper collet grip and leak-free seal. Installation should conform to applicable pneumatic or fluid-power system codes and the equipment manufacturer's specifications.
