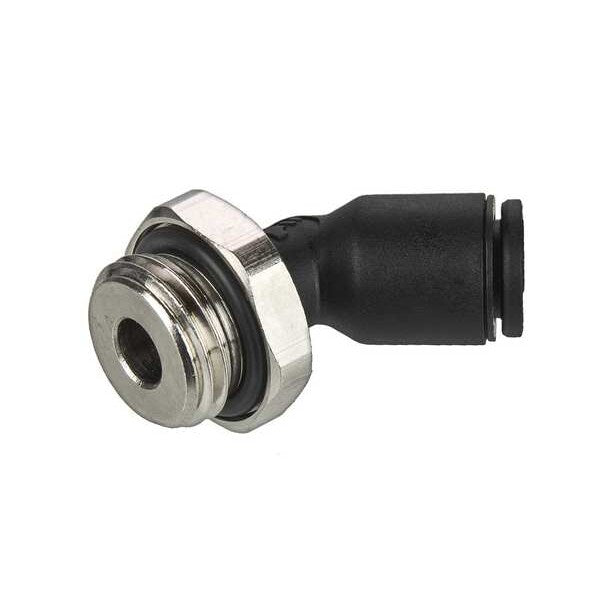

Legris 31335320 Push to Connect Fitting 290 psi 45 Degree Male Elbow

Product Description

The Legris 31335320 is a push-to-connect fitting designed for ease of use in various applications. This fitting features a 45-degree male elbow configuration suitable for connecting 1/8 inch outer diameter tubing. It is an ideal choice for quick connections and disconnections in low-pressure systems.

• Vacuum rating: 28 Hg
• Max working pressure: 290 psi
• Working temperature range: -4 to 175°F

Product Highlights

This fitting rotates 360 degrees for ease of assembly and includes a thread sealant pre-applied to the tapered threads for a secure connection.

Product Information

Standard Information

• Brand: Legris
• MPN: 31335320

Technical Specifications

• Fitting Angle: 45°
• Thread Type: UNF
• End Types: Tubing & UNF
• Hex Size: 8 mm
• Origin: Plastic Push to Connect Fittings
• Fitting Description: 45° Male Elbow
• Thread Size: #10-32
• Size Type: Fractional Sizes
• No. of Ends: 2
• End Size: 1/8 Tube(f)
• Tube O.D.: 1/8 inch
• Height: 0.490 inch
• Weight: 0.017 LB
• EAN or UPC: 820099667188
