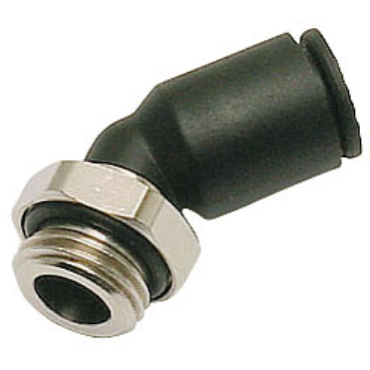

Legris 31331217 Push to Connect Fitting 45 Degree Male Elbow 12mm O.D. Tubing

Product Description

The Legris 31331217 is a push to connect fitting designed for efficient plumbing tasks. This fitting features a 45-degree male elbow, making it ideal for connections in tight spaces. It connects seamlessly with twelve millimeter outer diameter tubing and utilizes three eighths inch male BSPP threads.

• Max. working pressure of 290 psi
• Operating temperature range from -4 to 175 degrees Fahrenheit
• Thread sealant pre-applied for efficiency

Product Highlights

This fitting allows for a vacuum rating of 28 Hg and can rotate 360 degrees for easier assembly. It combines durability with versatility for various applications in HVAC and plumbing systems.

Product Information

Standard Information

• Brand: Legris
• Part Number: 102114427

Technical Specifications

• Material: nylon body with O ring seal, nickel-plated brass base
• Size Type: Metric Tube x BSPP Threads
• Thread Size: 3/8
• Overall Length: 26 mm
• End Size: 12 mm Tube(f)
• Tube O.D.: 12.000 mm
• Thread Type: BSPP
• Fitting Description: 45 degree Male Elbow
• No. of Ends: 2
• Fitting Angle: 45 degrees
• Origin: Plastic Push to Connect Fittings
• End Types: Tubing & BSPP
• Height: 44.500 mm
• Hex Size: 20 mm
• Weight: 0.163 lb
• EAN or UPC: 820099233949
