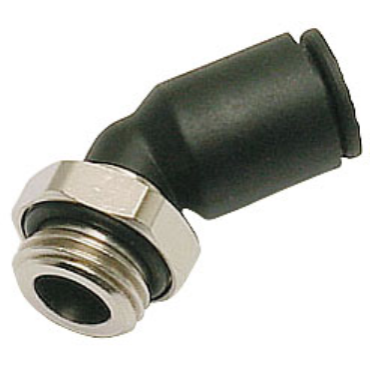

Legris 31331021 Push to Connect Fitting 45 Degree Male Elbow 10mm O.D. Tube x 1/2 BSPP

Product Description

The Legris 31331021 is a reliable push to connect fitting designed for easy assembly and secure connections. This fitting features a 45-degree male elbow suitable for ten millimeter outer diameter tubing and a half-inch BSPP thread. The construction ensures a strong and leak-free connection in various applications.

• Max working pressure: 290 psi
• Working temperature: -4 °F to 175 °F
• Vacuum rating: 28 Hg

Product Highlights

This fitting includes a thread sealant pre-applied to tapered threads, allowing for quick and easy installation. The design also rotates three hundred sixty degrees, offering flexibility during assembly.

Product Information

Standard Information

• Brand: Legris
• MPN: 31331021

Technical Specifications

• Tube O.D.: 10.000 mm
• Overall Length: 23 mm
• Hex Size: 24 mm
• Thread Type: BSPP
• Height: 41.000 mm
• End Types: Tubing & BSPP
• Material: nylon body with O ring seal, nickel-plated brass base
• Fitting Description: 45° Male Elbow
• Origin: Plastic Push to Connect Fittings
• Fitting Angle: 45°
• End Size: 10 mm Tube(f)
• No. of Ends: 2
• Thread Size: 1/2
• Size Type: Metric Tube x BSPP Threads
• Weight: 0.074 LB
• EAN or UPC: 820099233864
