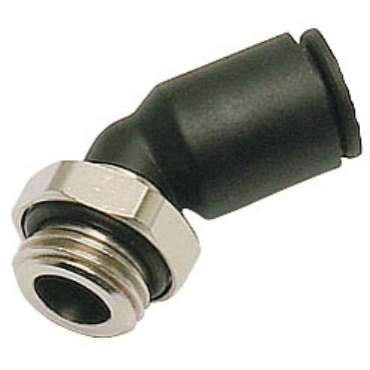

Legris 31331013 Push to Connect Fitting 1/4 (10mm Tube x BSPP)

Product Description

The Legris 31331013 is a push to connect fitting designed for use with ten millimeter O.D. tubing. This fitting is ideal for applications requiring a reliable connection with a 1/4 male BSPP thread.

• 45° male elbow configuration
• Suitable for 10mm outer diameter tubing
• Nickel-plated brass base for durability

Product Highlights

This fitting features easy assembly with a rotating design and is suitable for various plumbing and HVAC applications.

Product Information

Standard Information

• Brand: Legris
• MPN: 31331013

Technical Specifications

• Max. working pressure: 290 psi
• Working temperature: -4 °F to 175 °F
• Vacuum rating: 28 Hg
• Fitting angle: 45°
• Overall length: 23 mm
• Height: 40.500 mm
• Tube O.D.: 10.000 mm
• Hex size: 16 mm
• Material: Nylon body with O-ring seal, nickel-plated brass base
• No. of ends: 2
• End size: 10 mm Tube(f)
• End types: Tubing & BSPP
• Thread size: 1/4
• Thread type: BSPP
• Size type: Metric tube x BSPP threads
• EAN or UPC: 820099233802
• Weight: 0.044 LB
