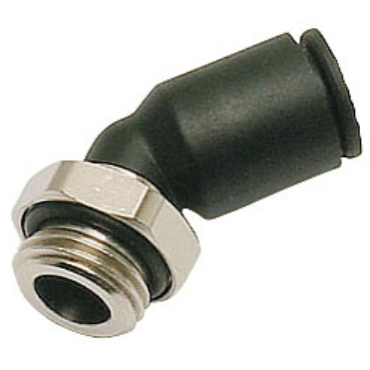

Legris 31330619 Push to Connect Fitting 45 Degree Male Elbow 6mm O.D. 3133 06 19

Brand: LEGRIS
SKU: 31330619
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Legris 31330619 is a push-to-connect fitting designed as a 45-degree male elbow. It is suitable for six millimeter outer diameter tubing. This fitting is practical for fluid transfer systems where space and angle constraints are present.

  • Max working pressure: 290 psi
  • Working temperature range: -4 degrees Fahrenheit to 175 degrees Fahrenheit
  • Vacuum rating: 28 Hg

Product Highlights

The product features thread sealant pre-applied on tapered threads, allowing for easy assembly. The fitting can rotate three hundred sixty degrees to simplify connection setups in tight spaces.

Product Information

Standard Information

  • Brand: Legris
  • MPN: 31330619
Technical Specifications
Fitting Description
45 degree male elbow
End Size
6 mm Tube (female)
Material
Nylon body with O-ring seal, nickel-plated brass base
Size Type
Metric Tube x BSPP threads
No. of Ends
2
Height
30.000 mm
Tube O.D.
6.000 mm
Overall Length
14.5 mm
End Types
Tubing & Metric Thread
Thread Type
Metric
Fitting Angle
45 degrees
Thread Size
M5
Hex Size
8 mm
Origin
Plastic Push to Connect Fittings
Weight
0.011 LB
EAN or UPC
820099233666
