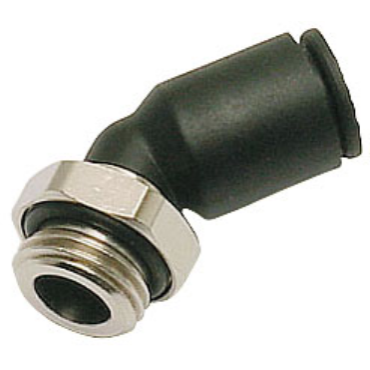

Legris 31330610 Push to Connect Fitting 45 Degree Male Elbow (6mm O.D. Tubing) Replacement MPN

Product Description

The Legris 31330610 is a push to connect fitting designed for various applications in plumbing and pneumatic systems. This fitting features a 45-degree male elbow configuration suitable for six millimeter outer diameter tubing. It helps in making quick and secure connections without the need for special tools.

• Max working pressure: 290 psi
• Working temperature range: -4 °F to 175 °F
• Thread sealant pre-applied for ease of use

Product Highlights

This fitting is equipped to rotate 360 degrees, facilitating easier assembly in tight spaces.

Product Information

Standard Information

• Brand: Legris
• MPN: 31330610

Technical Specifications

• Tube O.D.: 6.000 mm
• Overall Length: 14.5 mm
• Fitting Angle: 45°
• Material: Nylon body with O ring seal, nickel-plated brass base
• Hex Size: 13 mm
• No. of Ends: 2
• End Types: Tubing & BSPP
• Thread Size: 1/8 BSPP
