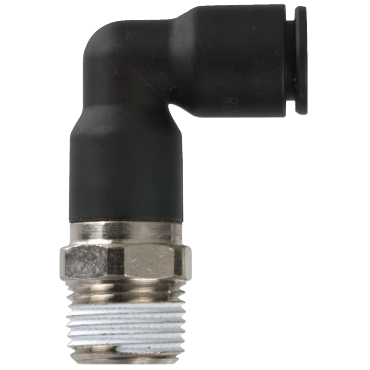

Legris 31296018 90 Male Elbow

Product Description

Legris 31296018 is a 90-degree male elbow fitting designed for the connection of semirigid plastic tubing in pneumatic applications. This fitting features a body made of glass-filled nylon, with threaded components constructed from nickel-plated brass. The elastomer seals are made of buna-nitrile, ensuring a secure and leak-free connection. To connect, simply push the tubing into the patented stainless steel gripping ring, which allows for easy assembly without the use of tools.

• Max. working pressure: 290 psi
• Working temperature range: -4 °F to 175 °F
• 360-degree rotation for ease of assembly

Product Highlights

This fitting is reusable and does not deform tubing. It is suitable for nylon, polyurethane, polyethylene, or Teflon tubing.

Product Information

Standard Information

• Brand: Legris
• Part Number: 31296018

Technical Specifications

• Fitting Description: 90° Male Elbow
• End Size: 3/8 Tube(f)
• Body Material: Nickel-Plated Brass
• Height: 1.450 inches
• Weight: 0.108 lb
• Thread Type: NPT
• No. of Ends: 2
• Tube O.D.: 3/8 inches
