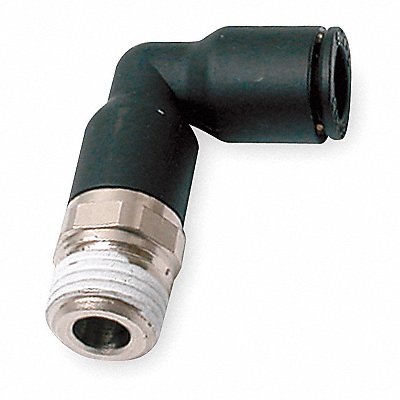

Legris 31296011 Extended Male Elbow 3/8 O.D X 1/8 NPT

Product Description

The Legris 31296011 is an extended male elbow designed for 3/8 outer diameter tubing and 1/8 NPT threaded applications. This fitting is part of the LF3000 series, known for its efficiency in pneumatic systems. The fitting allows for quick connection of semi-rigid plastic tubing with minimal tools required.

• Max working pressure of two hundred ninety psi
• Temperature range from negative four degrees Fahrenheit to one hundred seventy-five degrees Fahrenheit
• Reusable and easy to disconnect

Product Highlights

The Legris 31296011 offers a reliable and tight connection with a patented stainless steel gripping ring. Users can rotate the fitting three hundred sixty degrees for optimal positioning. Connections are made without deformation to the tubing, ensuring durability and longevity.

Product Information

Standard Information

• Brand: Legris
• MPN: 31296011

Technical Specifications

• Origin: Plastic Push to Connect Fittings
• Tube O.D: 3/8 in
• Body Material: Nickel-Plated Brass
• End Size: 3/8 Tube (f)
• No. of Ends: 2
• Thread Type: NPT
• Thread Size: 1/8
• Height: 1.400 in
• Fitting Angle: 90 degrees
• Hex Size: 17 mm
• Weight: 0.081 LB
• EAN or UPC: 820099232676
