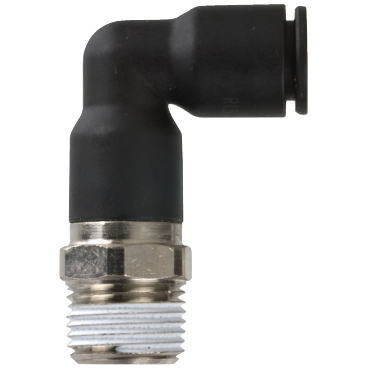

Legris 31295614 90 Male Elbow 1/4 Tube (f) 1/4

Product Description

The Legris 31295614 is a 90-degree male elbow fitting designed for connecting semi-rigid plastic tubing in pneumatic systems. Its construction includes a glass-filled nylon body and nickel-plated brass threaded components. This fitting offers a reliable and efficient means of establishing a leak-free connection by pushing the tubing into a patented stainless steel gripping ring.

• Designed for 1/4 inch outer diameter tubing
• Reusable and tool-free disconnection
• Suitable for a variety of tubing materials including nylon and polyurethane

Product Highlights

This fitting is ideal for situations requiring quick assembly and disassembly without the need for special tools.

Product Information

Standard Information

• Manufacturer: Legris
• Part Number: 31295614

Technical Specifications

• Max. Working Pressure: 290 psi
• Working Temperature: -4 °F to 175 °F
• Vacuum Rating: 28 Hg
• Rotation: 360° for ease of assembly
• Thread Sealant: Pre-applied on tapered threads
• Thread Type: NPT
• Fitting Description: 90° Male Elbow
• Material: Nickel-Plated Brass
• End Size: 1/4 Tube(f)
• Hex Size: 14 mm
• No. of Ends: 2
• End Types: Tubing & NPT
• Height: 1.080 in
• Tube O.D.: 1/4 in
• Body Material: Nickel-Plated Brass
• Fitting Angle: 90°
• Thread Size: 1/4
• Weight: 0.045 LB
