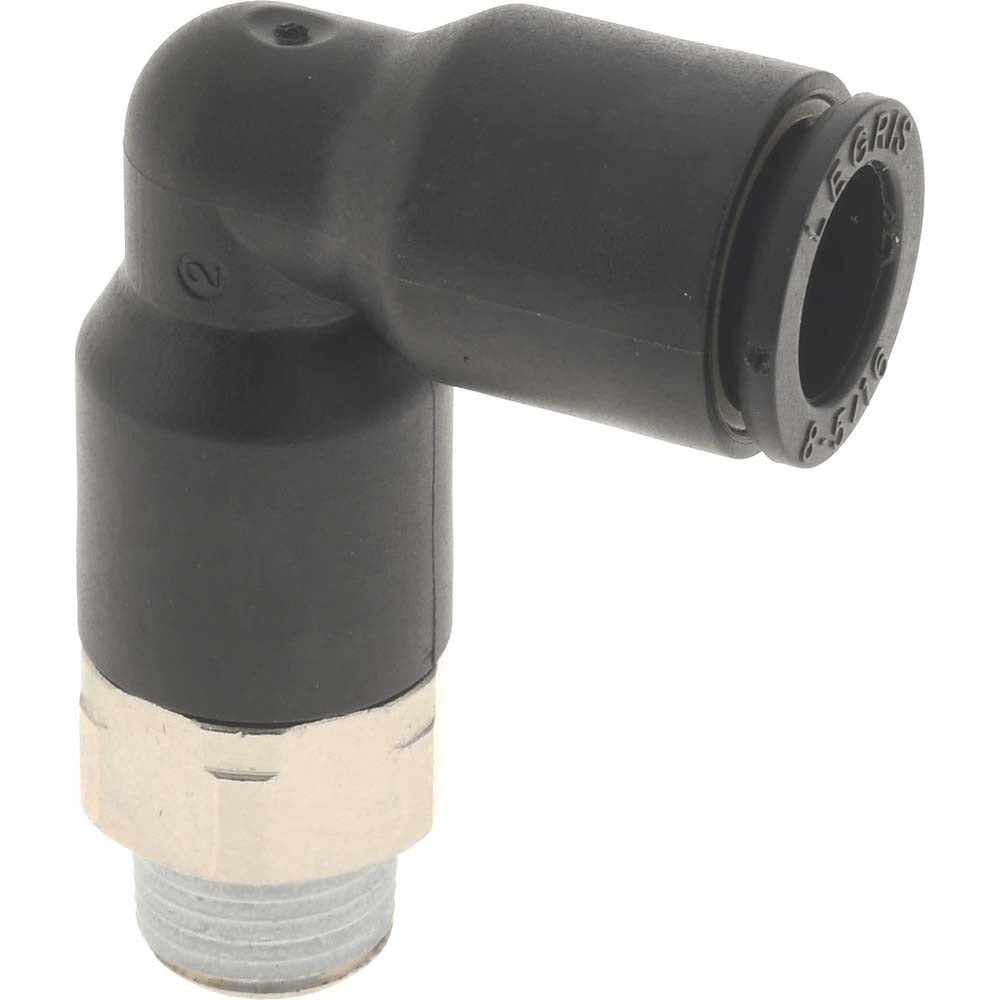

Legris 3129 08 10 Extended Male Elbow 8mm 1/8 Bspt

Product Description

The LEGRIS 3129 08 10 is a push-to-connect extended male elbow tube fitting designed for pneumatic and fluid line connections in industrial and mechanical systems. It connects 8mm outside diameter tubing to a 1/8 inch BSPT male threaded port at a 90-degree extended elbow angle. The fitting body is constructed from nylon and nickel-plated brass, supporting working pressures up to 290 psi. This style of fitting is commonly installed by plumbers, pipefitters, and pneumatic system technicians who need a compact, tool-free tube termination at a threaded port.

This fitting is suited for use in compressed air lines, pneumatic control circuits, and fluid distribution systems where a directional change from tube to a male threaded port is required. The extended elbow profile provides additional clearance when routing tubing away from panels, manifolds, or bulkheads in tight installations. The push-to-connect design allows for fast field assembly without ferrules, compression sleeves, or special tooling.

Key Features

• Push-to-connect design — no tools required for tube insertion
• Extended male elbow configuration for directional tube routing with added clearance
• Rated to 290 psi working pressure
• Tube OD: 8mm for precise metric tube fitment
• Thread: 1/8 inch BSPT male for compatibility with standard BSPT ported components
• Nylon and nickel-plated brass construction for corrosion resistance and durability

Compatibility

Designed as an OEM-style push-to-connect fitting for pneumatic and fluid systems using 8mm outside diameter tubing with 1/8 inch BSPT male threaded ports.

Installation Notes

Installation is typically performed by pipefitters or pneumatic system technicians. Depressurize and isolate the line completely before removing or installing any fittings. Apply appropriate thread sealant to the BSPT male threads per the system fluid compatibility requirements. When inserting tubing, ensure the tube end is cut cleanly and squarely to achieve a proper seal within the collet mechanism.
