Legris 3129 06 10 Extended Male Elbow Fitting 6mm Bspt

Product Description

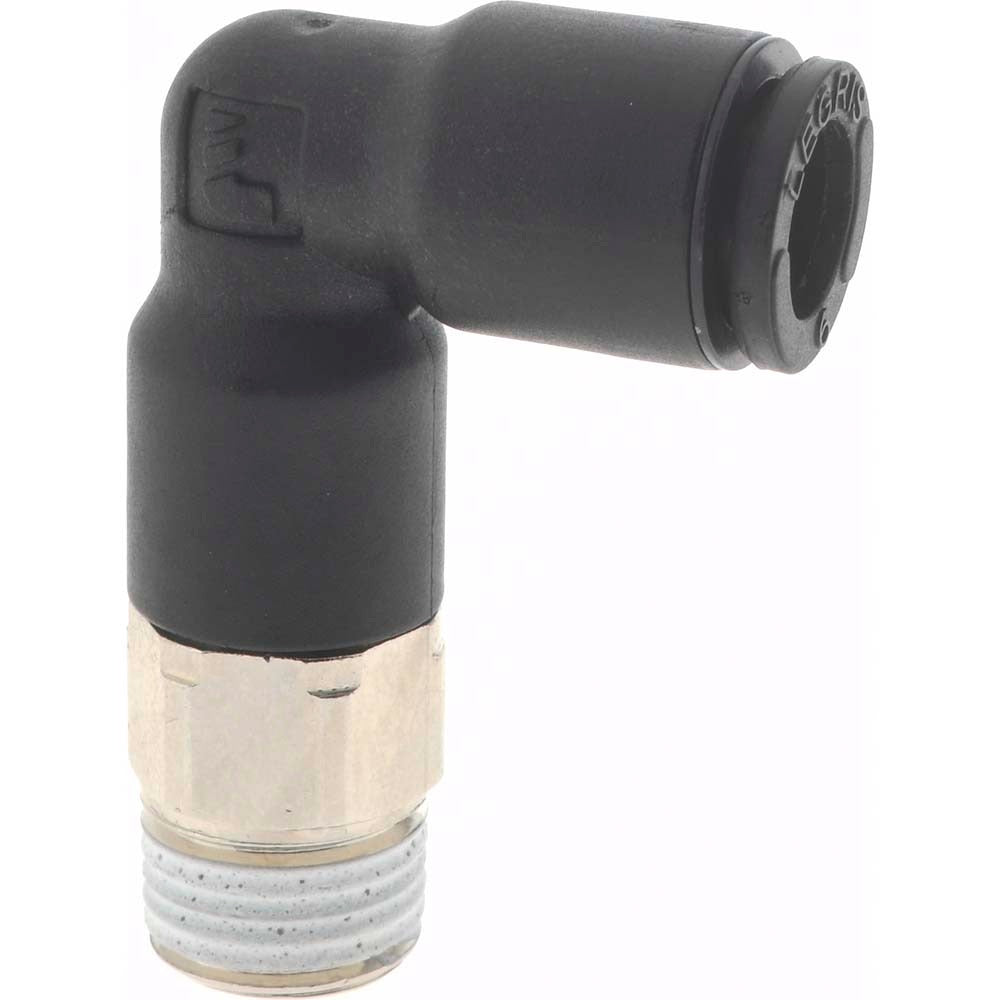

The LEGRIS 3129 06 10 is a push-to-connect extended male elbow tube fitting designed for pneumatic and fluid control plumbing lines. The fitting connects a 6mm outside diameter tube to a male BSPT threaded port in a 90-degree elbow configuration. The extended male thread design provides added clearance for installation in recessed ports or tight panel assemblies. Constructed from nylon and nickel-plated brass, this fitting handles working pressures up to 290 psi. It is installed by trade plumbers, pneumatic system technicians, and industrial maintenance professionals working on compressed air, hydraulic, or process fluid lines.

This fitting is suited for pneumatic tubing systems that require a compact right-angle connection between a 6mm OD tube and a male BSPT-threaded port. Common applications include compressed air distribution manifolds, instrumentation panels, and fluid control assemblies in both commercial and light industrial settings. The push-to-connect mechanism allows for tool-free tube insertion and secure retention without ferrules or compression hardware, reducing installation time on multi-connection assemblies.

Key Features

• Push-to-connect design allows tool-free tube insertion and secure retention
• Extended male elbow configuration provides clearance in recessed or panel-mounted port applications
• Rated to 290 psi for use in compressed air and process fluid lines
• Nylon and nickel-plated brass construction resists corrosion and wear
• Fits 6mm outside diameter tubing with a 1/8 inch male BSPT thread

Compatibility

Designed for use with 6mm outside diameter pneumatic or fluid tubing in systems with 1/8 inch male BSPT-threaded ports. Verify thread form and tube OD before installation, as BSPT and BSPP are dimensionally similar but not interchangeable in all applications.

Installation Notes

Installation is performed by qualified plumbers or pneumatic system technicians. Depressurize and isolate the system completely before removing or installing any fittings. Ensure the mating port thread form is BSPT and apply appropriate thread sealant per the system fluid and pressure requirements. Insert the tube fully into the push-to-connect collet until it seats to ensure a leak-free connection.
