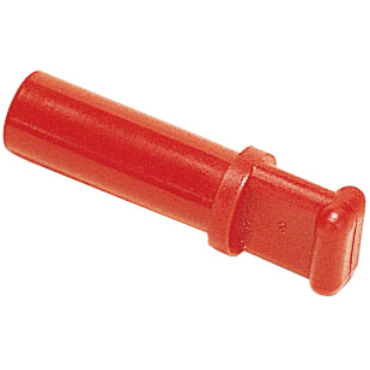

Legris 31265600 Plug for 1/4 O.D. Tubing

Product Description

Legris 31265600 is a plug fitting designed for use with one-quarter inch outer diameter tubing. This plug is part of the LF3000 series of push-to-connect fittings, ideal for pneumatic applications. The fitting is constructed from durable glass-filled nylon for a strong and reliable connection. It features nickel-plated brass threaded components and buna-nitrile elastomer seals, ensuring a leak-free experience. Installation is simple as the tubing can be pushed directly into the patented stainless steel gripping ring. A release button makes connections and disconnections easy without tools, allowing for reusable fittings that do not deform the tubing. Recommended for nylon, polyurethane, polyethylene, and Teflon tubing.

• Designed for one-quarter inch outer diameter tubing
• Max. working pressure of 290 psi
• Working temperature range of -4 °F to 175 °F

Product Highlights

This plug provides a secure and reusable connection for pneumatic systems.

Product Information

Standard Information

• Fitting Description: Plug
• No. of Ends: 1

Technical Specifications

• End Types: Tubing
• Body Material: Nylon
• Tube O.D.: 1/4 in
• Fitting Angle: Straight
• Size Type: Fractional, Equal Ends
• End Size: 1/4 Tube(f)
• Origin: Plastic Push to Connect Fittings
• Material: Nylon Body
• Type: Blanking Plug
• Weight: 0.01 LB
• EAN or UPC: 820099231440
