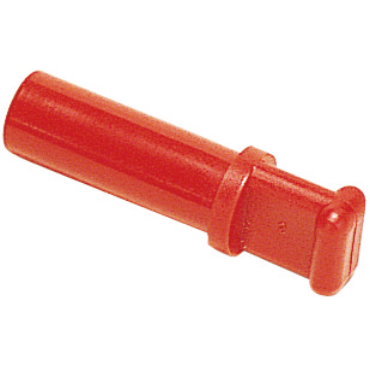

Legris 31261000 Plug 10mm O.D. Tubing

Product Description

Legris 31261000 is a plug designed for ten millimeter O.D. tubing. It is part of the LF3000 series of push-to-connect fittings. These fittings connect semi-rigid plastic tubing in pneumatic systems efficiently, minimizing labor and time. The body is made from glass-filled nylon, ensuring durability while the threaded parts are nickel-plated brass. Buna-nitrile elastomer seals provide leak-free connections. To use, simply push the tubing into the patented stainless steel gripping ring. A plastic release button is included on all fittings, allowing for easy connection and disconnection without the need for tools. The fittings do not deform the tubing, making them reusable. This product is compatible with nylon, polyurethane, polyethylene, or Teflon tubing.

• Max working pressure is 290 psi
• Suitable for a working temperature range from -4 degrees Fahrenheit to 175 degrees Fahrenheit
• Plug is red in color

Product Highlights

The Legris plug provides a reliable and easy-to-use solution for connecting pneumatic tubing.

Product Information

Standard Information

• Brand: Legris
• Part Number: 31261000

Technical Specifications

• Tube O.D.: 10 mm
• End Size: 10 mm Tube(f)
• Body Material: Nylon
• Fitting Type: Blanking Plug
• No. of Ends: 1
• Fitting Angle: Straight
• Weight: 0.006 lb
• EAN or UPC: 820099231013
