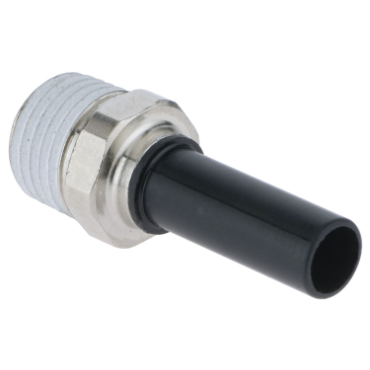

Legris 31210413 Push to Connect Fitting

Product Description

The Legris 31210413 is a push-to-connect fitting designed for use with four millimeter outer diameter tubing. It features a male standpipe with a one-quarter male BSPT thread. This fitting offers reliable connections and is constructed from durable materials.

• Compatible with 4 mm O.D. tubing
• 1/4 male BSPT threaded connection
• Built for ease of installation

Product Highlights

This fitting provides a secure and easy connection for pneumatic systems, making it ideal for various applications in the trades.

Product Information

Standard Information

• Brand: Legris
• Part Number: 31210413

Technical Specifications

• Material: Nylon probe, nickel-plated brass base, pre-applied thread sealant
• Origin: Plastic push to connect fittings
• Fitting Angle: Straight
• Thread Size: 1/4
• Height: 26.500 mm
• No. of Ends: 2
• End Types: Tubing & BSPT
• Tube O.D.: 4.000 mm
• Hex Size: 14 mm
• Thread Type: BSPT
• Fitting Description: Male Standpipe
• End Size: 5/32 or 4 mm Tube(f)
• Weight: 0.028 LB
• EAN or UPC: 820099228662
