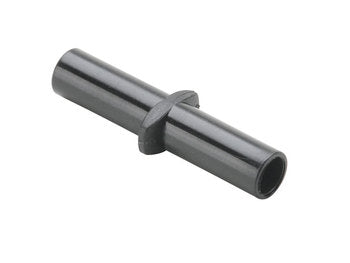

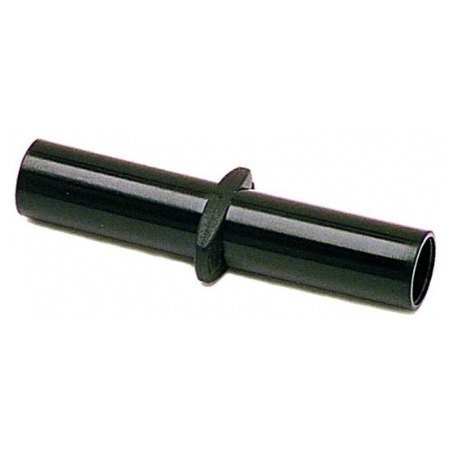

Legris 31200600 Push to Connect Fitting - 6mm O.D. - 3120 06 00

Product Description

Legris 31200600 Push to Connect Fitting is designed for connecting semi-rigid plastic tubing in pneumatic systems. This fitting features a body made from glass-filled nylon and nickel-plated brass threaded components. The elastomer seals are made from buna-nitrile, ensuring a tight and leak-free connection.

• Max. working pressure: 275 psi
• Thread sealant is pre-applied
• Elbows and tees can rotate 360 degrees

Product Highlights

This fitting operates with minimal effort, allowing for quick connections without tools. It is reusable and does not deform the tubing.

Product Information

Standard Information

• Brand: Legris
• MPN: 31200600

Technical Specifications

• Tube O.D.: 6.000 mm
• End Types: Tubing
• End Size: 6 mm Tube(f)
• Fitting Angle: Straight
• Origin: Plastic Push to Connect Fittings
• Overall Length: 38.5 mm
• Fitting Description: Double Male Union
• No. of Ends: 2
• Material: Nylon Body
• Weight: 0.002 lb
• EAN or UPC: 820099227917
