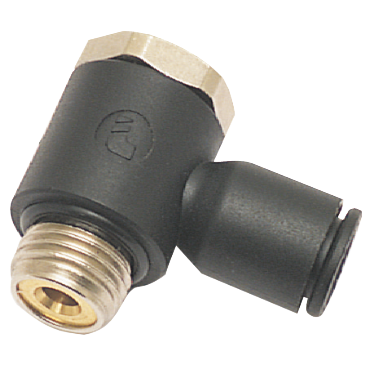

Legris 31185620 Push to Connect Fitting 1/4 Tube 90° Banjo Elbow

Product Description

Legris 31185620 is a push-to-connect fitting designed for 1/4 inch tubing. It allows quick and easy connections in pneumatic applications and requires minimal tools for operation. The fitting features a body made of glass-filled nylon and nickel-plated brass threaded components. Buna-nitrile elastomer seals help ensure a reliable, leak-free connection. Simply push the tubing into the patented stainless steel gripping ring for a secure fit.

• Constructed of durable materials for longevity
• Compatible with various types of tubing including nylon and Teflon
• Rotates 360° for easy assembly and disassembly

Product Highlights

This fitting is ideal for pneumatic systems where quick assembly is necessary, ensuring efficiency in installation and maintenance.

Product Information

Standard Information

• Brand: Legris
• Part Number: 31185620

Technical Specifications

• Max. Working Pressure: 290 psi
• Working Temperature: -4 °F to 175 °F
• Vacuum Rating: 28 Hg
• No. of Ends: 3
• Fitting Angle: 90°
• Thread Type: UNF
• Material: Nylon body and nickel-plated brass base
• End Size: 1/4 Tube (f)
• Tube O.D.: 1/4 in
