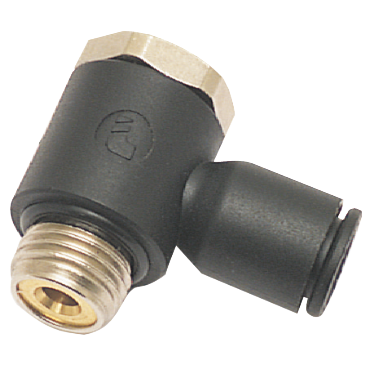

Legris 31185320 Push to Connect Fitting

Product Description

Legris 31185320 is a push-to-connect fitting designed for seamless connections in pneumatic applications. Made with a durable body of glass-filled nylon and nickel-plated brass threaded components, this fitting offers a reliable solution for connecting semi-rigid plastic tubing. The buna-nitrile elastomer seals ensure a tight, leak-free connection with minimal effort. Simply push the tubing into the patented stainless steel gripping ring to secure the connection, making it easy to install without tools. A standard plastic release button allows for quick disconnections without damaging the tubing, which is reusable. Recommended tubing materials include nylon, polyurethane, polyethylene, and Teflon.

• Max. working pressure: 290 psi
• Working temperature: -4 °F to 175 °F
• Vacuum rating: 28 Hg

Product Highlights

This fitting is ideal for applications requiring efficient assembly and disassembly. The design rotates 360° for ease of use.

Product Information

Standard Information

• Brand: Legris
• Part Number: 31185320

Technical Specifications

• End Size: 1/8 Tube(f)
• No. of Ends: 3
• Fitting Description: 90° Banjo Elbow
• End Types: Tubing & UNF
• Thread Size: #10-32
• Thread Type: UNF
• Size Type: Fractional Sizes
• Origin: Plastic Push to Connect Fittings
• Height: 0.510 in
• Fitting Angle: 90°
• Material: nylon body, nickel-plated brass base, O ring seal
• Tube O.D.: 1/8 in
• Weight: 0.014 LB
• EAN or UPC: 820099227382
