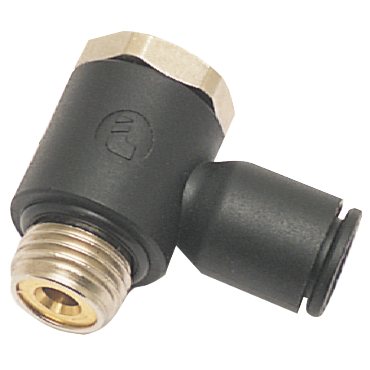

Legris 31180813 Push To Connect Fitting 1/4 Male BSPP 8mm Tubing

Product Description

Legris 31180813 is a push-to-connect fitting designed for seamless connections in pneumatic applications. The fitting connects semirigid plastic tubing quickly and efficiently, using minimal effort. Made from glass-filled nylon and featuring nickel-plated brass components, this fitting offers durability and reliability.

• Designed for 8 mm O.D. tubing.
• Compatible with 1/4 Male BSPP threads.
• Reusable and does not deform tubing.

Product Highlights

Push-to-connect design simplifies assembly and disassembly. A plastic release button allows for easy reuse without tools.

Product Information

Standard Information

• Brand: Legris
• Part Number: 31180813

Technical Specifications

• Fitting Description: 90° Banjo Elbow
• Tube O.D: 5/16 in, 8.000 mm
• Thread Size: 1/4
• Thread Type: BSPP
• Material: Nylon body, nickel-plated brass base
• Number of Ends: 3
• Size Type: Metric Tube x BSPP Threads
• Origin: Plastic Push to Connect Fittings
• End Types: Tubing & BSPP
• Hex Size: 17 mm
• Height: 21.000 mm
• End Size: 5/16 or 8 mm Tube (f)
• Fitting Angle: 90°
• Weight: 0.066 LB
• EAN or UPC: 820099226965
