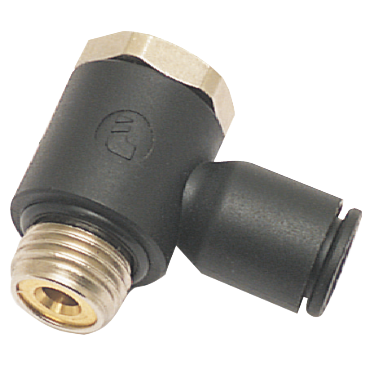

Legris 31180810 Push to Connect Fitting 290 psi 8 mm O.D. Tubing

Product Description

Legris 31180810 is a push-to-connect fitting designed for quick and reliable connections of semirigid plastic tubing in pneumatic applications. The fitting is built from glass-filled nylon, featuring nickel-plated brass threaded components and buna-nitrile seals for durability. This design simplifies the connection process, as the tubing firmly connects by merely pushing it into the stainless steel gripping ring. Each fitting includes a plastic release button, making it easy to disconnect without tools. The design prevents tubing deformation and allows for reuse. It is compatible with nylon, polyurethane, polyethylene, or Teflon tubing.

• Max. working pressure: 290 psi
• Working temperature range: -4 °F to 175 °F
• Vacuum rating: 28 Hg

Product Highlights

This fitting rotates 360 degrees for easy assembly and comes with thread sealant already applied to the tapered threads.

Product Information

Standard Information

• Brand: Legris
• MPN: 31180810

Technical Specifications

• Thread Type: BSPP
• No. of Ends: 3
• End Types: Tubing & BSPP
• Size Type: Metric Tube x BSPP Threads
• Origin: Plastic Push to Connect Fittings
• Fitting Angle: 90°
• Thread Size: 1/8
• Material: Nylon body, nickel-plated brass base, with O ring seal
• Tube O.D.: 5/16 in, 8.000 mm
• Hex Size: 13 mm
• Fitting Description: 90° Banjo Elbow
• Height: 16.500 mm
• End Size: 5/16 or 8 mm Tube(f)
• Weight: 0.049 LB
• EAN or UPC: 820099226873
