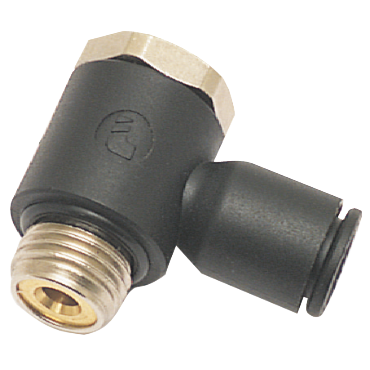

Legris 31180420 Push to Connect Fitting

Product Description

The Legris 31180420 is a push-to-connect fitting designed for use in pneumatic applications. This fitting connects semirigid plastic tubing quickly and requires minimal assembly time. It features a glass-filled nylon body and nickel-plated brass threaded components, ensuring durability. The elastomer seals are made from buna-nitrile, which enhances sealing capability. To connect or disconnect tubing, simply push the tubing into the patented stainless steel gripping ring.

• Banjo fitting for 5/32 or 4 mm O.D. tubing
• 10-32 Male UNF thread size
• Reusable design with low connection force required

Product Highlights

This fitting facilitates easy connections and disconnections, promoting efficient workflow in installation and maintenance tasks.

Product Information

Standard Information

• Brand: Legris
• Part Number: 31180420

Technical Specifications

• Max working pressure: 290 psi
• Working temperature: -4 °F to 175 °F
• Vacuum rating: 28 Hg
• Thread sealant: Pre-applied on tapered threads
• Fitting angle: 90°
• End types: Tubing & UNF
• No. of ends: 3
• Weight: 0.014 LB
