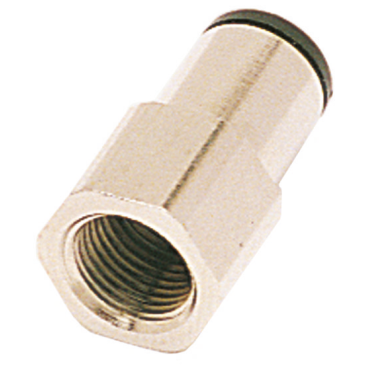

Legris 31140613 Straight Female Connector 290 psi 6 mm Tube 31140613

Product Description

The Legris 31140613 is a straight female connector designed for efficient fluid transfer. This fitting is suitable for use with tubing and BSPP threaded connections. It is built to withstand a maximum working pressure of 290 psi and operates effectively within a temperature range of negative four degrees Fahrenheit to one hundred seventy-five degrees Fahrenheit.

• Max. working pressure of 290 psi
• Working temperature range from -4 °F to 175 °F
• Vacuum rating of twenty-eight inches of mercury

Product Highlights

Manufactured from nickel-plated brass, this connector ensures durability and reliability in various applications.

Product Information

Standard Information

• Material: Nickel-Plated Brass
• Availability: Ready To Ship

Technical Specifications

• Max. Working Pressure: 290 psi
• Working Temperature: -4 °F to 175 °F
• Vacuum Rating: 28 Hg
• Fitting Angle: Straight
• End Size: 6 mm Tube (f)
• Thread Size: 1/4
• Hex Size: 16 mm
• Weight: 0.035 LB
• EAN or UPC: 820099224022
