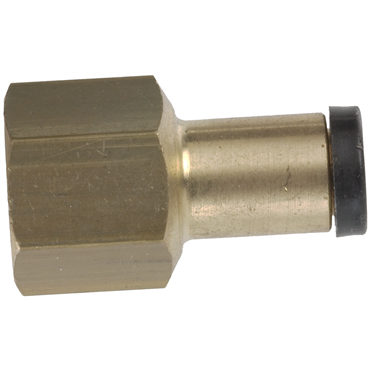

Legris 31140419 Push to Connect Fitting

Product Description

Legris 31140419 is a push-to-connect fitting designed for quick and reliable connections in pneumatic applications. The body is made from glass-filled nylon, ensuring durability and a strong connection. Its nickel-plated brass threaded components provide resistance to corrosion, while buna-nitrile elastomer seals enhance leak prevention. Users achieve a secure, leak-free tubing connection by simply pushing the tubing into its stainless steel gripping ring. A release button facilitates easy disconnection without requiring tools. This fitting is compatible with nylon, polyurethane, polyethylene, or Teflon tubing.

• Straight female connector for four millimeter outer diameter tubing
• M5 female metric thread size
• Reusable and easy to install

Product Highlights

This fitting enables efficient and quick connections in pneumatic systems, reducing the time and labor typically needed for assembly.

Product Information

Standard Information

• Brand: Legris
• MPN: 31140419

Technical Specifications

• Max. working pressure: 290 psi
• Working temperature: -4 °F to 175 °F
• Vacuum rating: 28 Hg
• Hex size: 8 mm
• Material: nylon body, nickel-plated brass base
• End size: 5/32 or 4 mm tube (female)
• No. of ends: 2
• Thread size: M5
• Tube O.D.: 4.000 mm, 5/32 in
• Fitting angle: Straight
• Fitting description: Straight female connector
