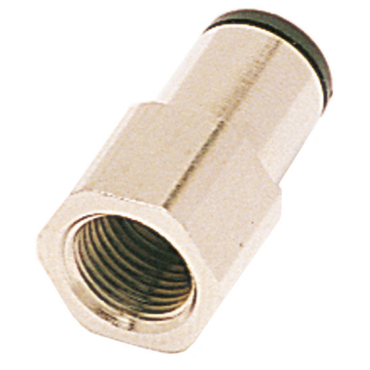

Legris 31140410 Straight Female Connector 290 psi (4 mm) Replacement MPN

Product Description

The Legris 31140410 is a straight female connector designed for use in a variety of applications. This product features a maximum working pressure of 290 psi, suitable for a range of pneumatic systems.

• Max working pressure: 290 psi
• Working temperature: -4 °F to 175 °F
• Vacuum rating: 28 Hg

Product Highlights

This connector is ideal for pneumatic and fluid transfer applications.

Product Information

Standard Information

• Brand: Legris
• MPN: 31140410

Technical Specifications

• Tube O.D.: 4.000 mm
• Height: 22.500 mm
• Material: Nickel-Plated Brass
• Hex Size: 13 mm
• Fitting Description: Straight Female Connector
• Origin: Plastic Push to Connect Fittings
• No. of Ends: 2
• End Size: 5/32 or 4 mm Tube (f)
• Size Type: Metric Sizes
• Fitting Angle: Straight
• Thread Type: BSPP
• Body Material: Nickel-Plated Brass
• Thread Size: G1/8
• End Types: Tubing & BSPP
• Weight: 0.022 LB
• EAN or UPC: 820099223667
